Flat Screen Display Stand

BT8551

For Medium / Large Screens



Designed to mount screens up to 50kg in either landscape or portrait orientation, the BT8551 is available in three heights; 1.1m, 1.5m and 2m. The stand features B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt adjustment up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height after installation. The heavy duty base can be bolted to the floor for permanent displays or alternatively used freestanding with the rubber feet supplied.

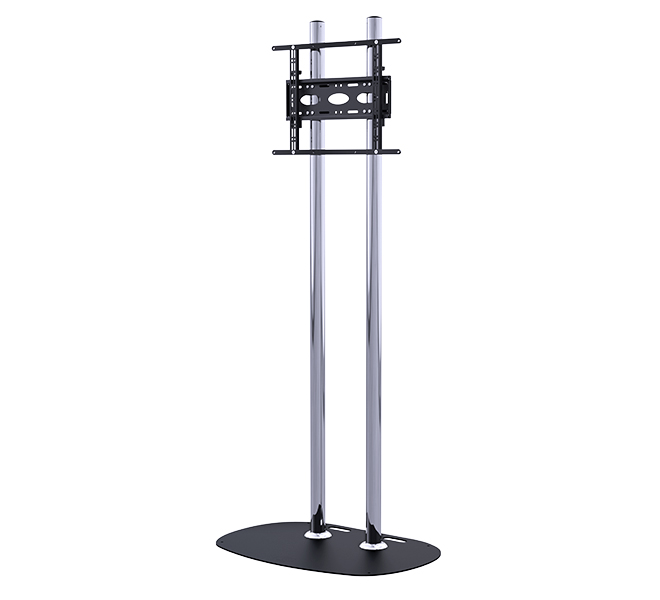

  BT8551 Flat Screen Display Stand
  • Universal design suitable to mount screens in a landscape or portrait orientation
  • Unique ‘Torsion-tilt’ mechanism for easy tilt adjustment
  • Arms feature levelling screws to adjust the screen height
  • Heavy duty base can be used freestanding or bolted to the floor
  • Shelves and other accessories can be fitted to the poles using ∅60mm accessory collars
  • Safety screws help prevent unauthorised screen removal
  • Integrated cable management for a neat and tidy installation

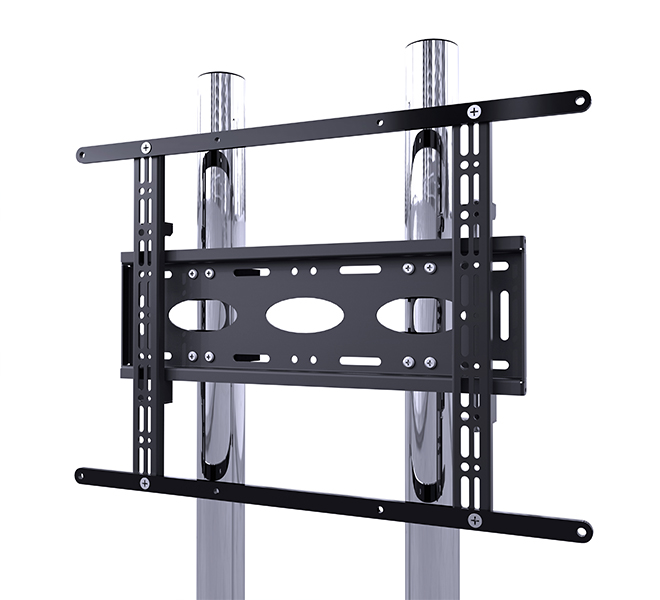

  • Simple ‘hook-on’ installation
  • All mounting hardware included
  • Recommended screen size: 39" - 65"
  • Max load: 50kg (110lbs)
  • VESA Compatibility: up to 600 x 400mm
  • Tilt adjustment: +/- 15°
  • Base Dimensions: W: 890mm D: 610mm H: 12mm*
  • Colour (poles): Black or Chrome
  • Colour (interface & base): Black

*Base Height including rubber feet: 22mm

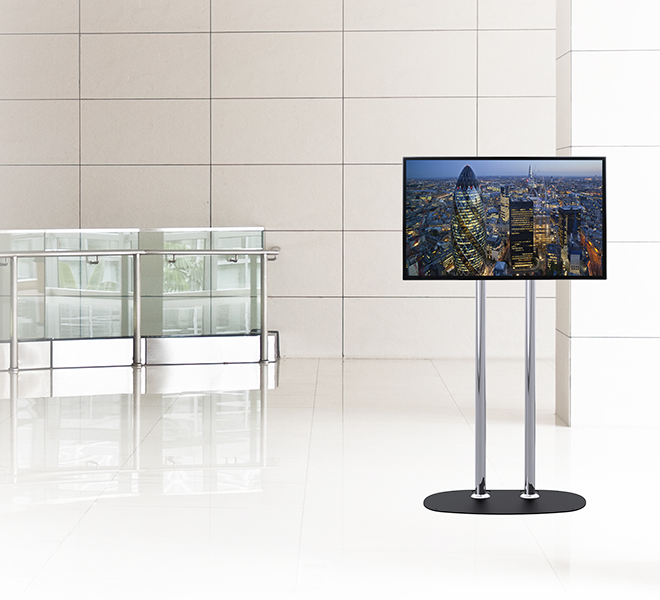

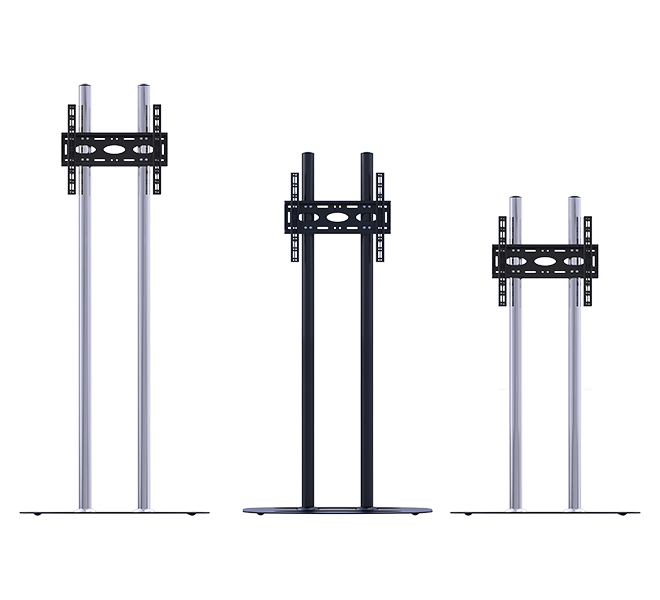

BT8551 Flat Screen Display Stand Mount screen in a landscape (horizontal) or portrait (vertical) display Available in three heights

Product Specification Sheet (PDF)

Assembly Sheet (PDF)
