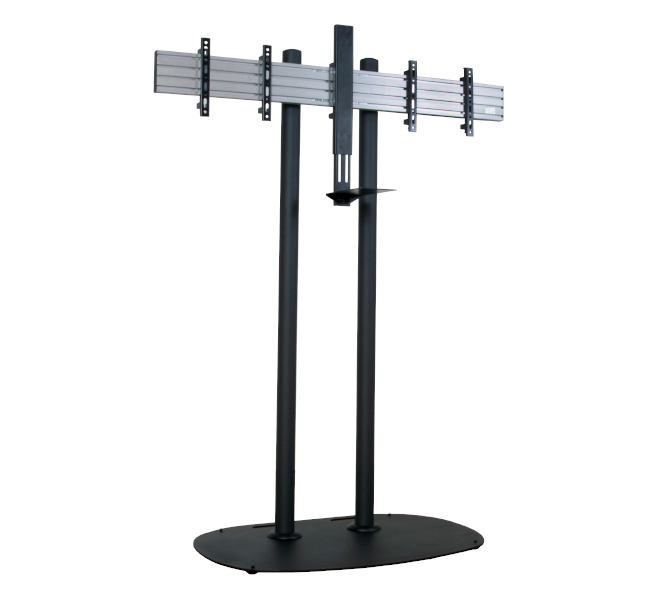

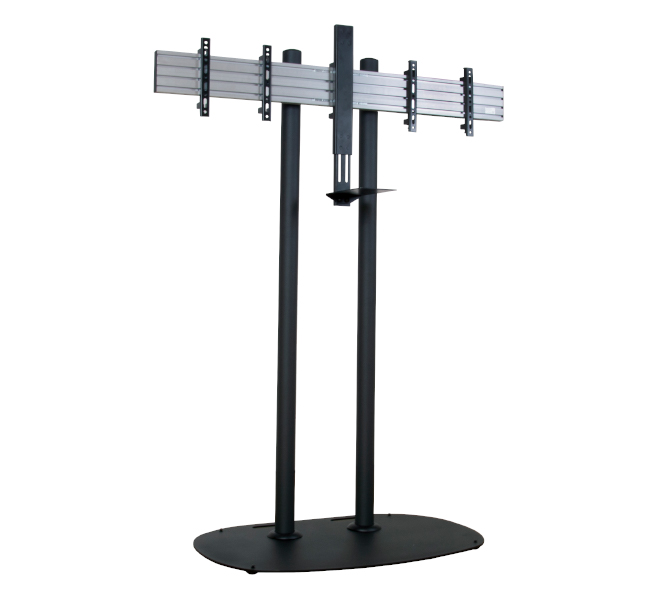

Universal Twin Screen VC Stand with Camera Shelf

BT8520

For Two Screens up to 32"

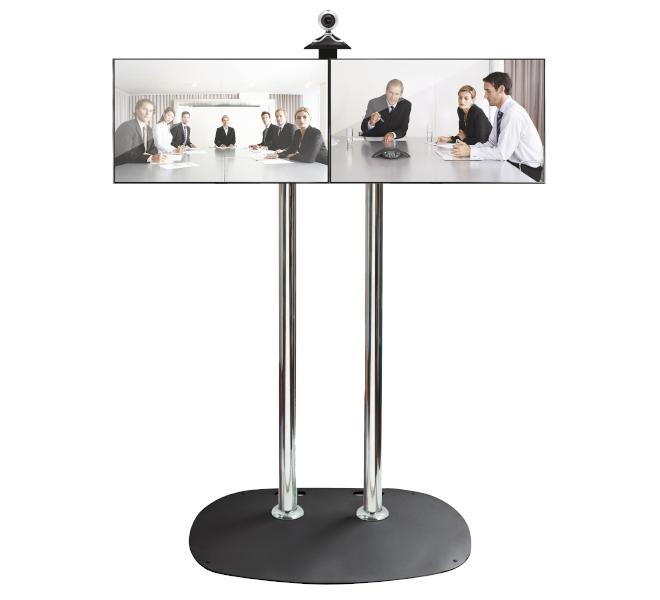

The BT8520 is the ideal video conferencing solution for twin screens up to 38". As part of B-Tech's dynamic System X range, it features an aluminium mounting rail designed to hold two screens side by side and is quick and easy to assemble. The heavy duty base can be bolted to the floor for permanent installations or used freestanding with the rubber feet supplied. The included VC camera shelf easily fits to the rail at any position which is ideal for those wanting the flexibility to mount their camera either above or below the screens.




















  • Universal design suitable for mounting two small - medium sized screens side-by-side

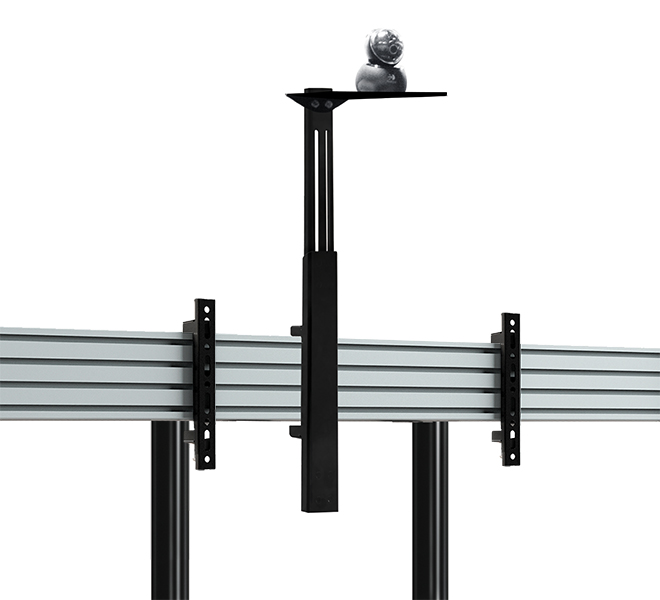

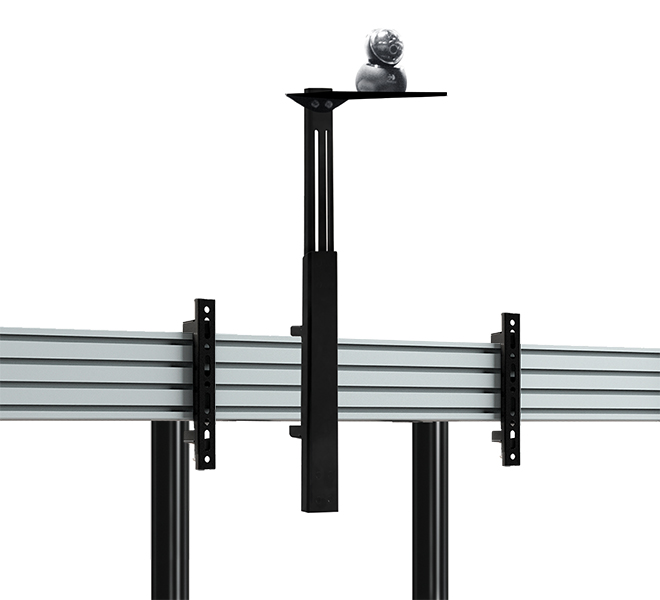

  • Includes VC shelf which can be fixed above or below the screens
  • Supplied with rubber feet to accommodate uneven floor surfaces
  • Arms feature levelling screws to adjust the screen height
  • Accessories such as shelves can be fitted to the poles using Ø60mm collars
  • Integrated cable management for a neat and tidy installation
  • Safety screws help prevent unauthorised screen removal
  • Simple ‘hook-on’ screen installation
  • Recommended screen size: 32” to 38"
  • Max load: 35kg (77lbs) per screen
  • VESA® & non-VESA fixings: up to 200mm (max vertical dimension)
  • Dimensions: W: 1405mm H: 1531mm D: 610mm
  • Colours option (Ø60mm poles): Black or Chrome
BT8520 - Universal Twin Screen VC Stand Includes VC shelf which can mount camera above or below the screens Includes VC shelf which can mount camera above or below the screens Can be displayed freestanding or bolted to the floor

Product Specification Sheet (PDF)

Assembly Leaflet (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)

You must log in to view this content





1 x BT4003 Trolley Base                                  £71

1 x BTW100-4 Set of Trolley wheels              £28

2 x BT4015 Trolley poles                                £84 / £122

1 x BT6026 COMPRISING OF THE BELOW 3 PARTS:

4 x BT7260 Collars                                             £FOC                         Pre assembly – 48HRS

2 x BT7025 Adapter plates                            £14                         Pre assembly   – 48HRS

2 x BT7051 collars                                             £FOC                         Pre assembly – 48HRS

1 x BT7850-10 pole 1m                                   £14.5 / £25

4 x BT7051 collars                                             £60

2 x BT8431 screen mount                              £82

1 x BT6016 video conferencing shelf        £40
