Universal Twin Screen VC Trolley with Camera Shelf

BT8512

For two screens up to 55"




The BT8512 is the ideal mobile video conferencing solution for twin screens up to 55". The trolley is supplied with a shelf for VC cameras which gives the user the flexibility to mount their camera either above or below the screens and integrated cable management keeps finished installations neat and tidy. Non-marking braked castors allow the trolley to be relocated easily and safely without marking floor surfaces and optional screw-in levelling feet are also included for freestanding applications if mobility is not required.







BT8512 - Twin Screen VC Display Trolley



  • Universal design suitable for mounting two medium / large sized screens side-by-side
  • High-end aesthetic quality
  • Includes VC shelf which can be fixed above or below the screens
  • Features non-marking 4" locking/braked castors
  • Also supplied with adjustable levelling feet
  • Arms feature levelling screws to adjust the screen height
  • Accessories such as shelves can be fitted to the poles using Ø60mm collars
  • Integrated cable management for a neat and tidy installation
  • Safety screws help prevent unauthorised removal of screens
  • Simple ‘hook-on’ screen installation
  • Recommended screen size: 47" to 55"
  • Max load: 60kg (132lbs) per screen
  • VESA® and non-VESA fixings: up to 400 x 400mm
  • Dimensions: W: 1754mm H: 1680mm D: 810mm
  • Colours option (Ø60mm poles): Black or Chrome

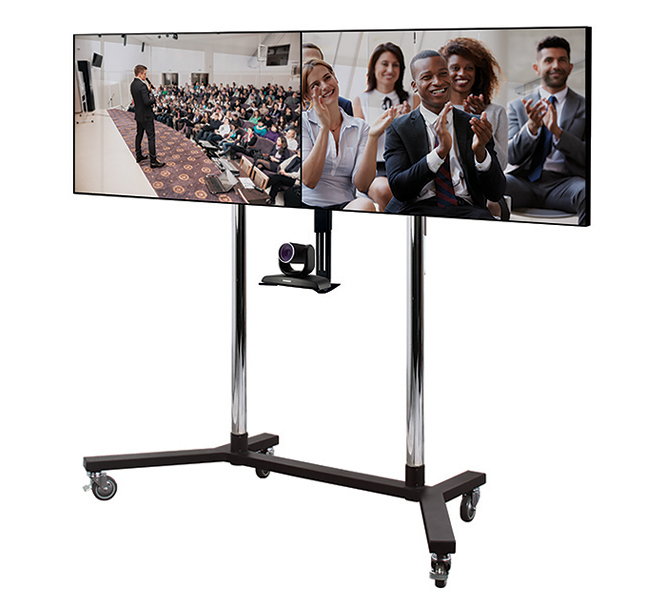

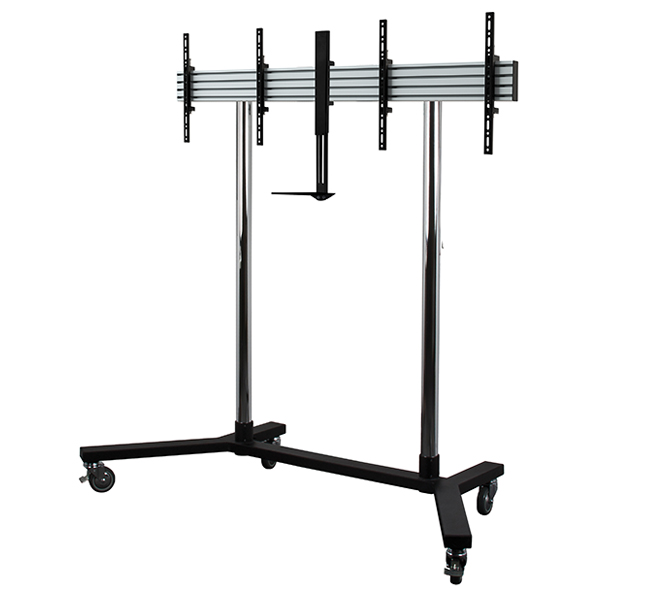

BT8512 - Twin Screen VC Display Trolley BT8512 - Twin Screen VC Display Trolley - with screens BT8512 - VC shelf can mount camera above or below the screens BT8512 - Includes non-marking 4 inch locking/braked castors

Product Specification Sheet (PDF)

Assembly Leaflet (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)
