System X™ Universal Interface Arms

BT8390-VESA200F

 For Small / Medium Screens




Ideal for single row, multi-screen installations, these interface arms are designed to mount small to medium sized screens in a fixed position along System X horizontal mounting rails. The universal design is compatible with a variety of different screens and allows them to be mounted in either landscape or portrait orientations. Levelling screws on each interface arm provides post installation height adjustment and a mounted depth of 48mm from the wall allows easy access for cables and connectors.






  • Ideal for menu boards and other multi-screen installations
  • Universal design compatible with most screens
  • Suitable for landscape or portrait mounting
  • Lateral adjustment - position arms anywhere along the length of the rail

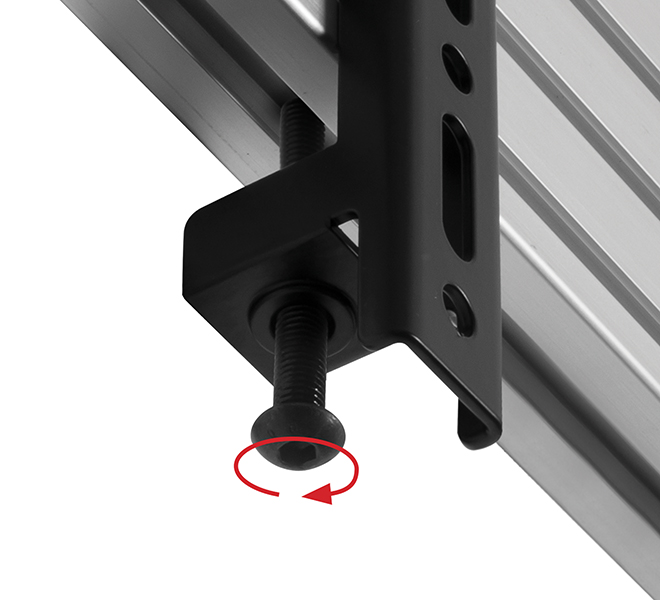

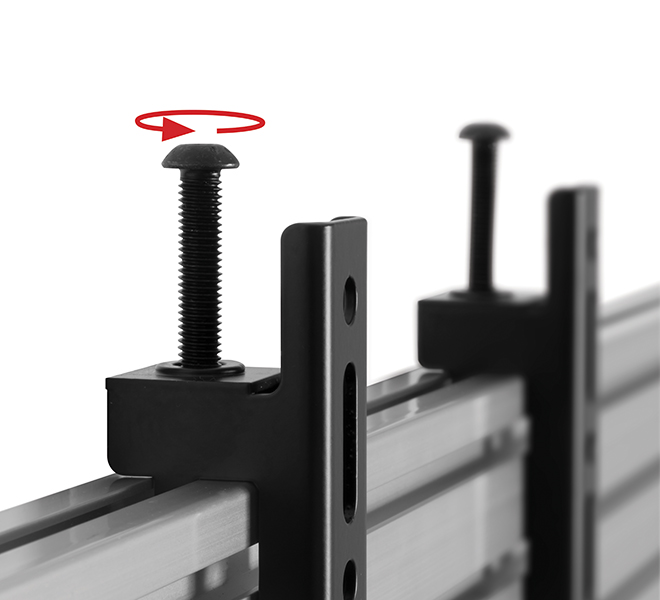

  • Includes levelling screws to adjust the screen height
  • Safety screws help prevent unauthorised removal of screens

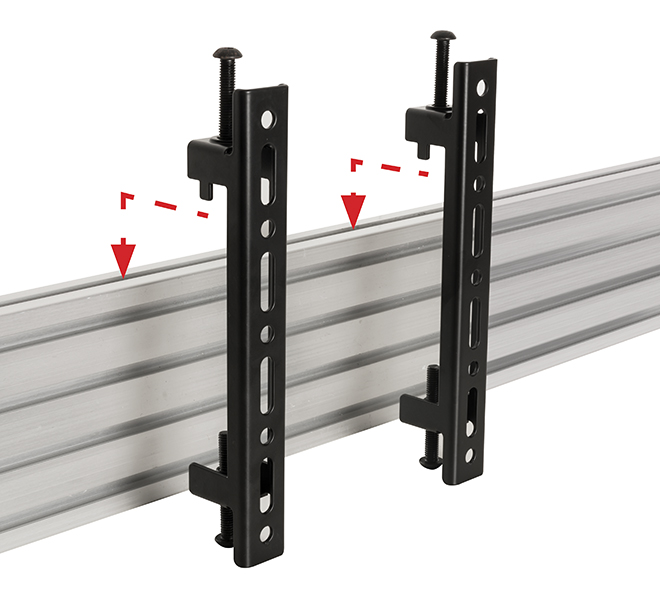

  • Simple ‘hook-on’ installation
  • Recommended screen size: up to 47" (119.4cm)
  • Max load: 70kg (154.3lbs)
  • VESA® & non-VESA fixings: up to 200mm* (vertical dimension)
  • Depth (typical wall mounted install): 48mm (1.9")
  • Supplied in pairs

    *The VESA specification of the BT8390-VESA200F refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary.

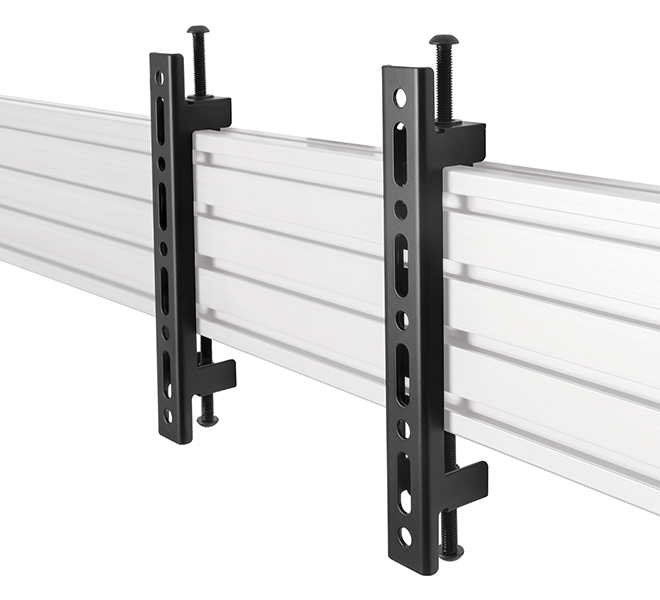

BT8390-VESA200F - System X™ Universal Interface Arms Arms feature levelling screws to adjust the screen height Safety screws help prevent unauthorised removal of screens Simple 'hook-on' installation

Specification Sheet

Specification Sheet (PDF)

Specification Sheet - US Letter (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)



Greensheet

Greensheet (PDF)

You must log in to view this content
