Bolt-Down Retractable Base Videowall Stand

BT8377

 Ideal for close to window retail installs




Designed to mount videowalls, the BT8377 is a retractable mounting solution with a universal design suitable for all videowall screens from 32" to 75". Ideal for retail displays and other applications with minimal floor space, the BT8377 is part of B-Tech's dynamic System X range; a contemporary mounting solution which is lightweight yet incredibly strong, has a high-end aesthetic quality and comes with important time saving features, such as tool-less micro-adjustment and a universal screen position spacer to speed up the installation process. Off-the-shelf 2x2 and 3x3 packages are available for the BT8377 or for a custom configuration please contact us.





  BT8377 - Bolt-Down Retractable Base Videowall Stand

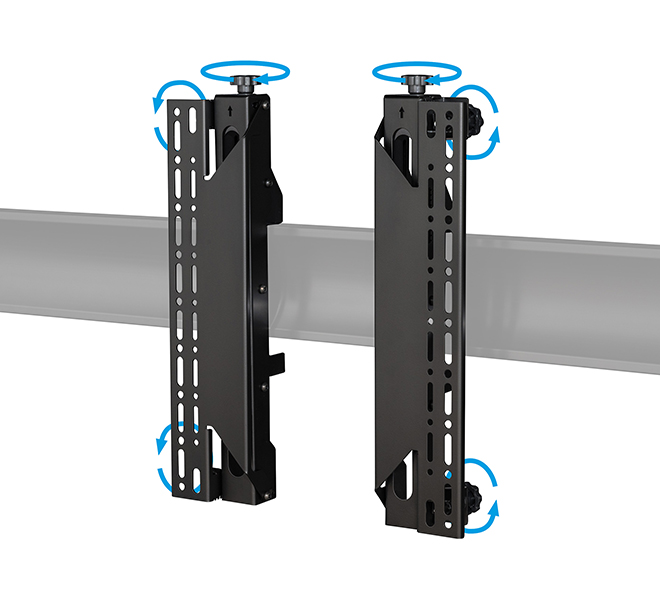

  • Tool-less micro-adjustments for seamless screen alignment
  • Sliding floor base retracts the System X column/display stand backwards
  • Collar compatible accessories can be fitted directly to the extrusion
  • Configurable solutions available to order to your requirements, from stock
  • Suitable for landscape or portrait mounting
  • Small footprint for an unobtrusive installation into confined areas
  • Lockable mechanism
  • Base nternal storage area available, ideal for power supplies, extension cord etc.
  • Integrated cable management
  • Safety screws help prevent unauthorised removal of screens
  • All mounting hardware included

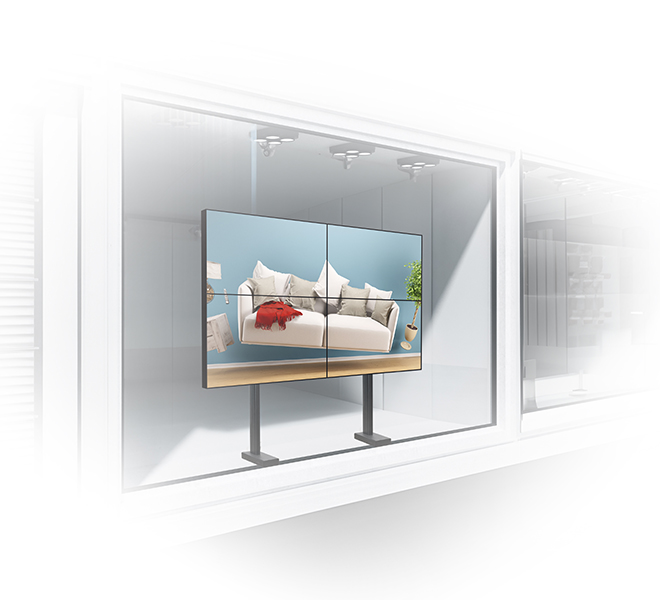

  • Ideal for shop fronts, close-to-the-window installations
  • Recommended screen size: 32" - 75"
  • Max load: 150kg (331lbs) (per column)*
  • VESA® & non-VESA fixings: up to 900mm (35")
  • Base dimensions: W: 262mm (10.3") H: 88mm (3.4") D :426-832mm (17" - 33")
  • Colour (base, rails & interface arms) : Black
  • Colour (columns): Black or Silver
BT8377 - Bolt-Down Retractable Base Videowall Stand BT8377 - Bolt-Down Retractable Base Videowall Stand BT8377 - Bolt-Down Retractable Base Videowall Stand BT8377 - Bolt-Down Retractable Base Videowall Stand
