Modular Free Standing Curved Video Wall Mount


For Screens up to 50kg (110lbs)

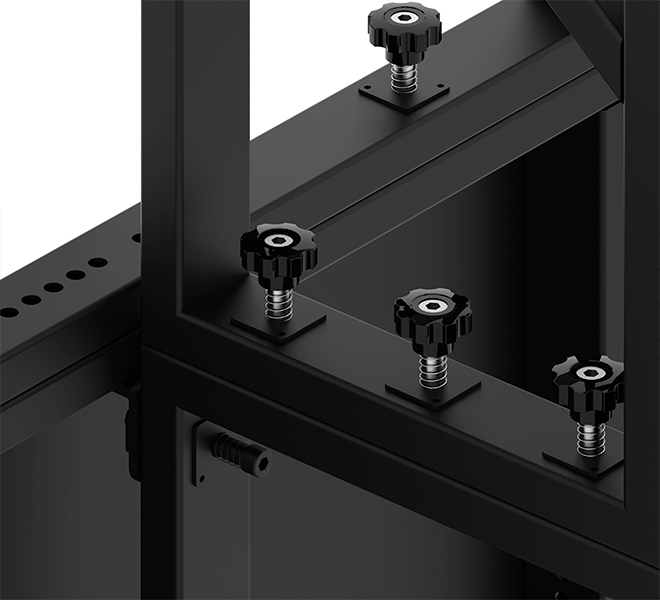

The BT8352 is a made to order premium video wall mounting solution designed to mount freestanding video walls in a curved configuration. The modular design features adjustable compass brackets which allow the angle of each column to be adjusted by up to 30°, meaning a full 180° curve can be achieved with just 7 columns. Additional features such as captive, fast-fit connectors and 8 point micro-adjustment make installations extremely fast. The modular design allows installations ranging from a 2x2 to 70x7 and one kit can be used in mulitple configurations, for example a 3x3 kit can be used in 14 different arrangements. Additional accessories such as castors and a bolt down kit are also available.

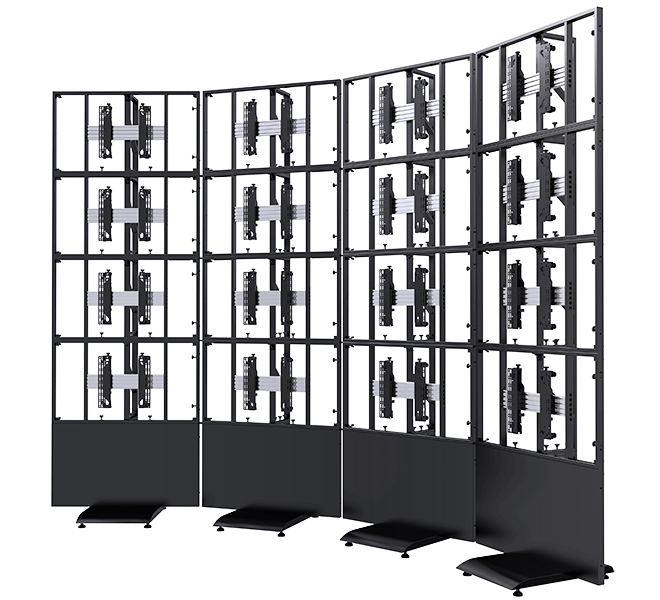

BT8352 Professional Free Standing Curved Video Wall Mount with Multiple Configurations


  • Designed to mount narrow bezel monitors of 46", 55" and 60" up to 50kg per monitor
  • Modular design is quick and easy to install - perfect for temporary or rental video wall applications

  • Modular design allows for multiple configurations. Order to your specific requirements - anything from a 2x2 to a 7x70 configuration! See the video wall configurator for more information
  • Curve adjustment up to 30° per column
  • Can be ordered for use in landscape or portrait orientation
  • Integrated fast-fit connectors means no loose fittings
  • Captive, fast-fit nuts and screws make assembly and disassembly quick and easy
  • Strong reinforced modular structure is coated in Epoxy powder which is both stylish and durable, perfect for repeated assembly
  • Monitors can be mounted to the center of the mount or towards the front of the mount with added ballast support to avoid trip hazards
  • Mobile castors, bolt down kits and optional aesthetic covers are available

  • Max Weight: 50kg (110lbs) per monitor
  • VESA Compatibility:
    200 x 200, 200 x 300, 300 x 200,
    300 x 300, 400 x 200, 400 x 300, 400 x 400, 600 x 400 (when using BT7564 adaptor)
  • Curve Adjustment: up to 30° (per column)
  • Maximum structure limits
  • Columns: Unlimited
  • Rows:
    7 with 46" screens in landscape
    6 with 55" screens in landscape
    5 with 65" screens in landscape
    3 with 46", 55", 60" screens in portrait
  • Colour available: Black
BT8352 - Freestanding Curved Video Wall Mount BT8352 - Freestanding Curved Video Wall Mount BT8352 - Freestanding Curved Video Wall Mount BT8352 - Freestanding Curved Video Wall Mount

Modular Freestanding Video Wall Mounting Solutions - Product Information Booklet (PDF)

Product Specification Sheet (PDF)
