Ultra-Slim Single Screen Digital Signage Kiosk

BT7002

High-end, premium quality

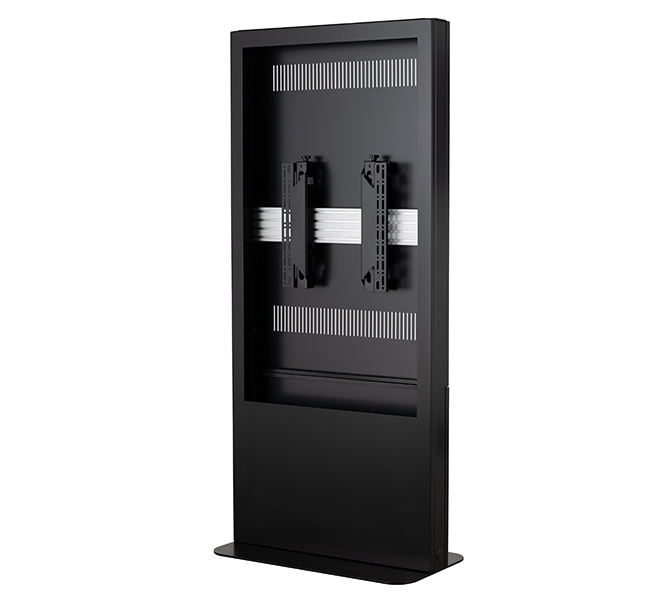

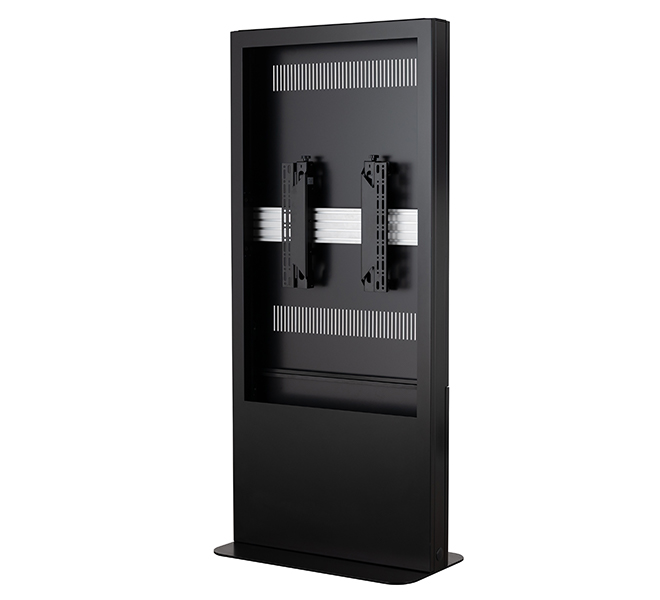

The BT7002 is an ultra-slim display kiosk designed to portrait mount a single digital signage screen. A rigid chassis is fixed to a heavy duty steel base which can be used freestanding or bolted to the floor and is finished stylishly with satin black or white outer covers. The internal mounting system is made to ensure the mounted screen sits perfectly level and flush with the front opening of the kiosk, which is laser cut to match your screen size.






  • High-end aesthetic quality with a premium satin finish
  • Integrated cable management

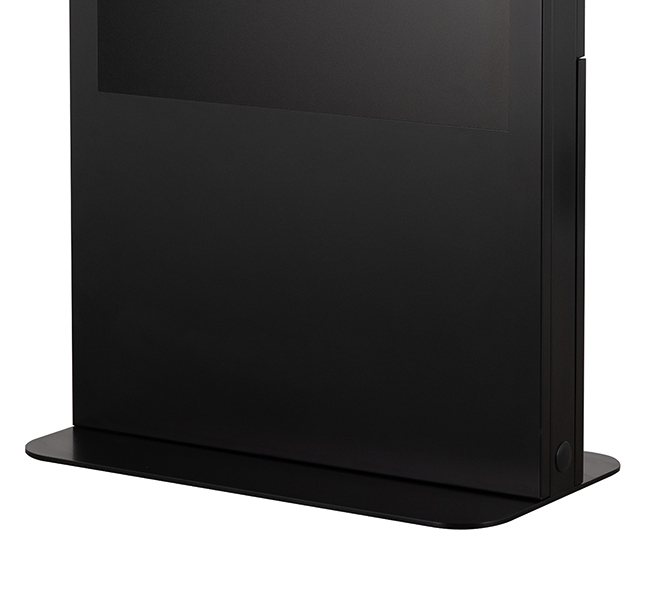

  • 5mm thick heavy duty steel base
  • Can be used freestanding or bolted to the floor
  • Lockable top panel helps prevent unauthorised removal of the screen
  • Removable front and rear panels for easy installation and maintenance

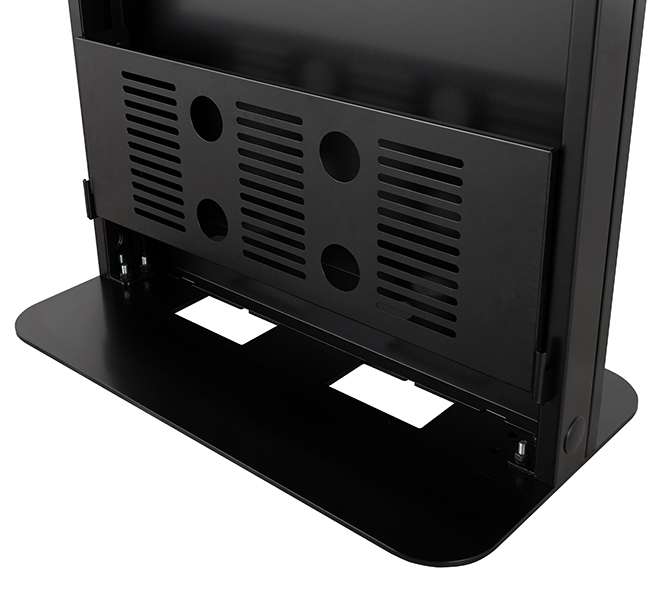

  • Includes internal storage area in lower section for media players and devices
  • Vented top and rear panels allow airflow to and from the device
  • Kiosks can be branded with your company logo if required
  • Simple ‘hook-on’ screen installation
  • For indoor use only
  • Suitable for screens: from 27" (68.6cm) up to 65" (165cm) *
  • Max load: 25kg (55lbs)
  • VESA and non-VESA fixings: 200mm x 200mm up to 600mm x 400mm
  • Kiosk dimensions: W: 804mm (31.6") D: 120mm (4.7") H: 1804mm (71")*
  • Base dimensions: W: 804mm (31.6") D: 450mm (17.7") H: 5mm (0.2")**
  • Colour: Black or White

    *Screen window is cut to size
BT7002 - Ultra-Slim Single Screen Portrait Digital Signage Kiosk Removable front and rear panels for easy installation and maintenance Vented rear panels allow airflow to and from the device Kiosks can be branded with your company logo if required

Specification Sheet

Specification Sheet (PDF)



Installation Guide

Installation Guide (PDF)
