CCTV Ceiling Mount with Tilt Adjustment

BT5963

For A Tilted Flat Screen & Dome Camera




The BT5963 is a CCTV ceiling mount designed for a small to medium-sized dome security camera and a small, tilted flat screen display. Available with a 1 or 2 metre ceiling drop, the BT5963 features integrated cable management allowing cables to run through the centre of the pole and out through either the top or side of the ceiling mount, ensuring finished installations are neat and tidy. For longer drops, the pole length can be extended with a joiner (BT5924) and additional poles (BT5935) from the System V Range, whilst accessories such as a flat screen can be added with the use of a ø38mm accessory collar (BT5952) and compatible screen mount.

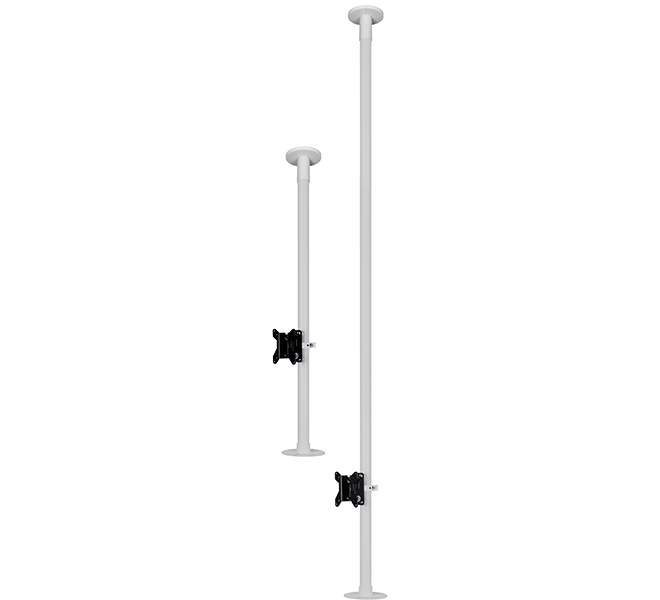

  BT5963 - Mounts both a dome shaped cctv camera and a flat screen monitor from the ceiling
  • Mounts a dome camera and small flat screen to the ceiling
  • Available in a choice of two different drop lengths
  • Easy tilt adjustment of screen
  • Multiple grub screws allow micro-adjustment of the pole to ensure a perfectly angled drop
  • Safety bolts ensure pole and mount are securely joined
  • Integrated cable management allows cables to pass through the centre of the pole to a screen and out through the top or side of the ceiling mount
  • Recommended screen size: up to 28" (71cm)
  • Max. screen load: 20kg (44lbs)
  • Max. camera load: 5kg (11lbs)
  • Tilt of screen: +17 / -10°
  • VESA® screen compatibility: up to 100 x 100
  • BT5963-FD100 pole length: 1036mm (40.8")
  • BT5963-FD200 pole length: 2036mm (80")
  • Camera fixing dimensions: 51mm (2") - 127.5mm (5")
  • Colour: White

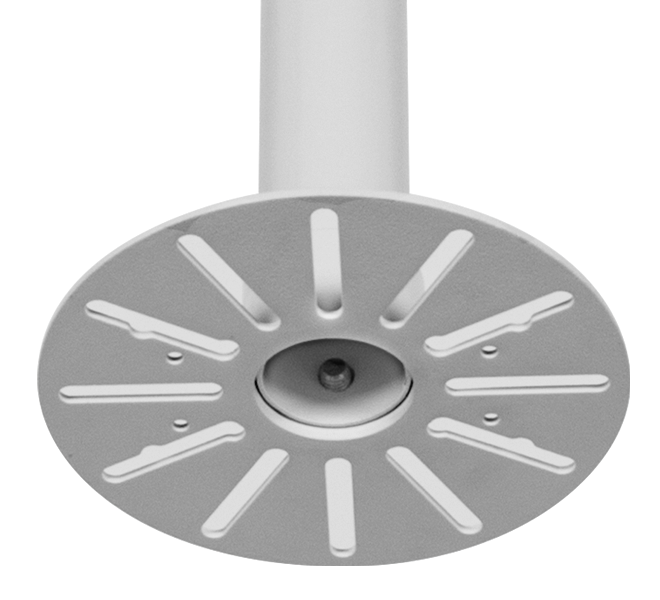

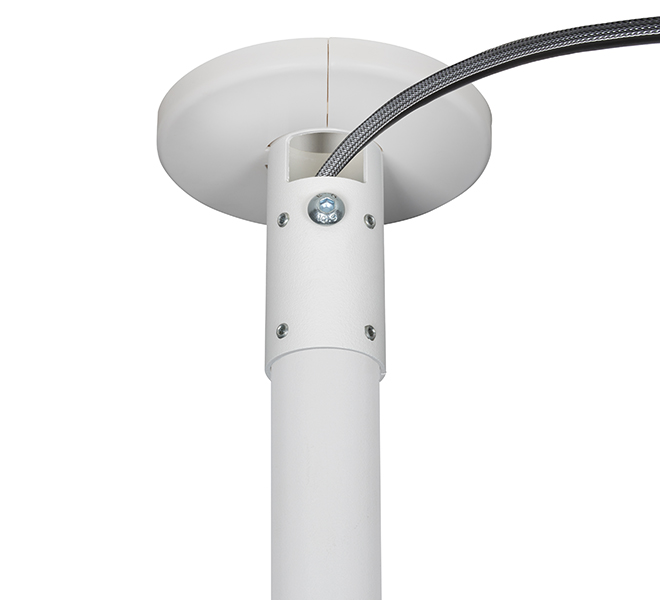

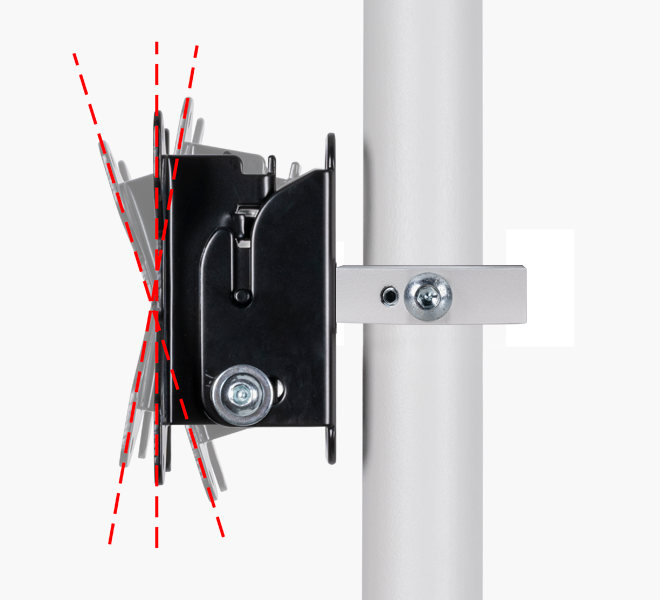

BT5963 - Mounts both a dome shaped cctv camera and a flat screen monitor from the ceiling BT5963 - Integrated cable management through the top and side of the ceiling mount BT5963 - Multiple mounting points for cameras with fixing points up to 144mm diameter BT5963 - Easy tilt adjustment of screen

Product Specification Sheets

Specification Sheet - English (PDF)

Fiche de Spécifications - Français (PDF)

Specificatieblad - Nederlands (PDF)

Hoja de especificación - Español (PDF)

Spezifikationsblatt - Deutsch (PDF)



Assembly Leaflet

Installation Guide (PDF)



Technical Drawings

Technical Drawing FD100 (PDF)

Technical Drawing FD200 (PDF)
