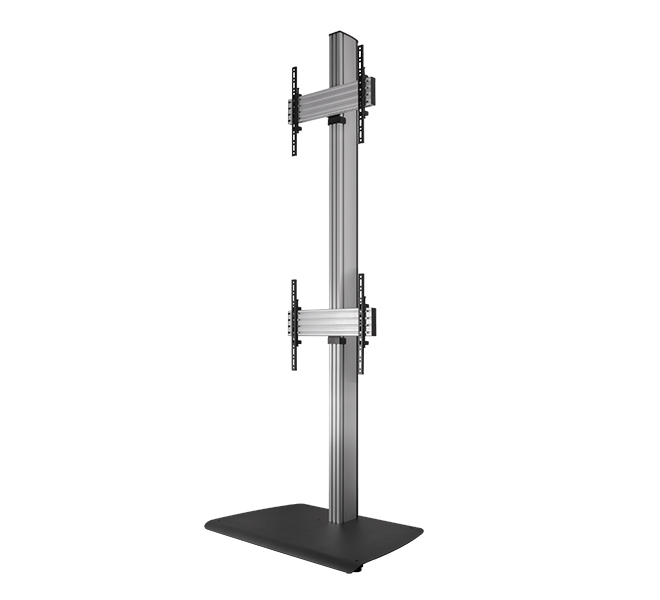

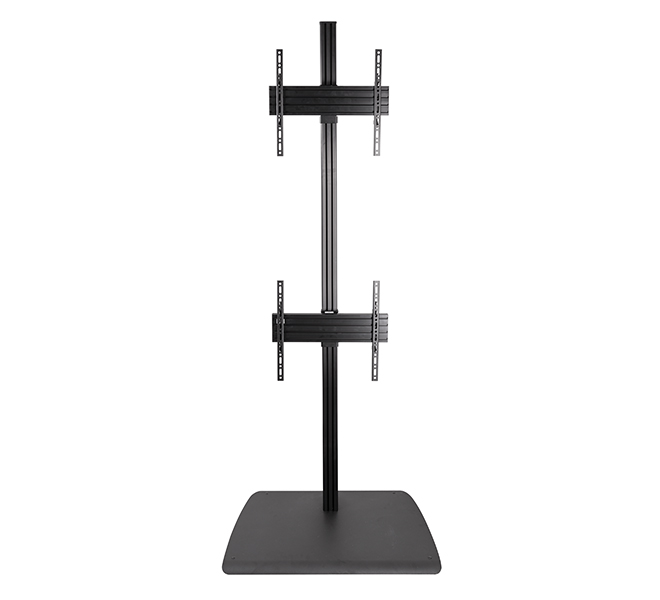

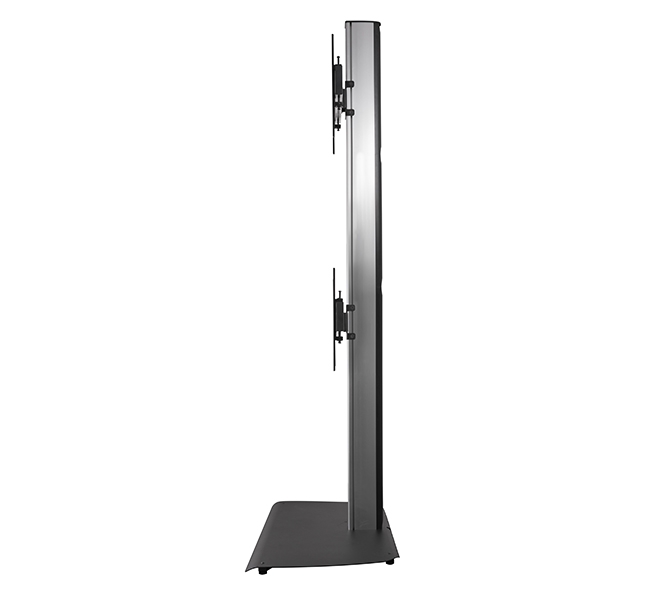

System X™ Universal Dual Stack Flat Screen
Floor Stand - 2.4m

BTF842

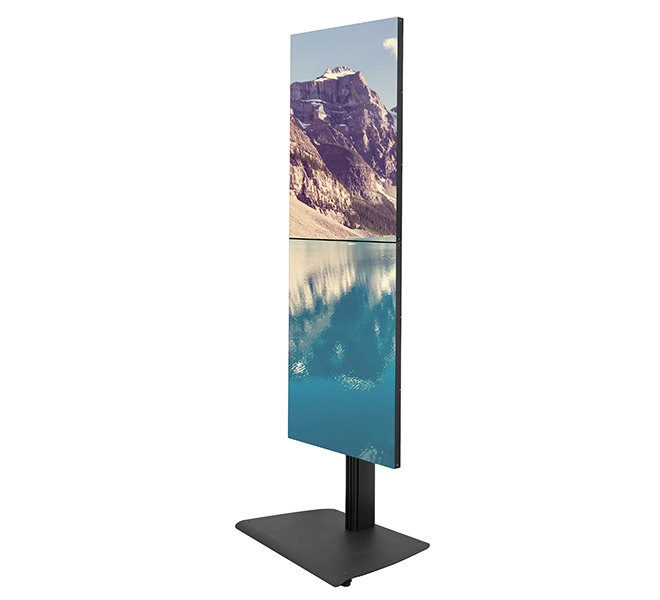

For portrait mounting


	The BTF842 is a premium mounting solution designed to mount two screens in portrait orientation, one above the other. A heavy duty steel base eliminates the need to bolt to the floor and adjustable levelling feet are included to accommodate uneven surfaces. The high-end aesthetic with an anodised aluminium finish and integrated cable management ensures finished installations are neat and tidy, making the BTF842 ideal for use in professional or commercial applications.

Universal design suitable for screens in a portrait orientation
Heavy duty steel base construction provides stability, eliminating the need to bolt to the floor
Can also be bolted to the floor to help prevent unauthorised relocation of the display

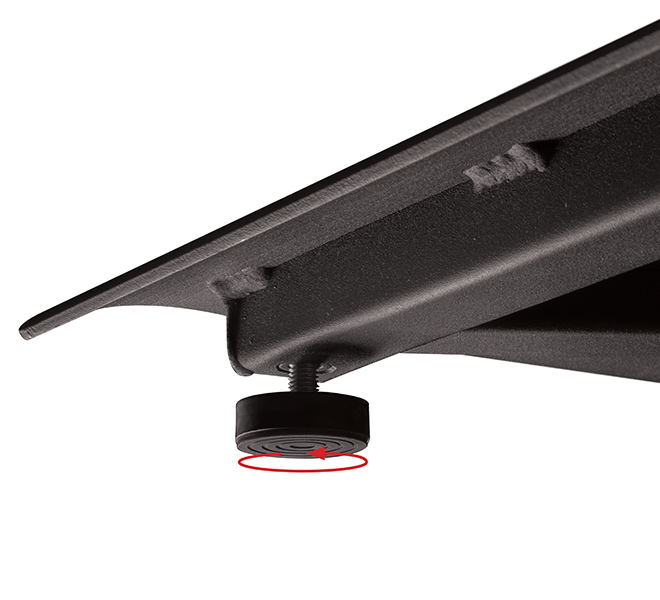

Supplied with adjustable levelling feet to accommodate uneven floor surfaces

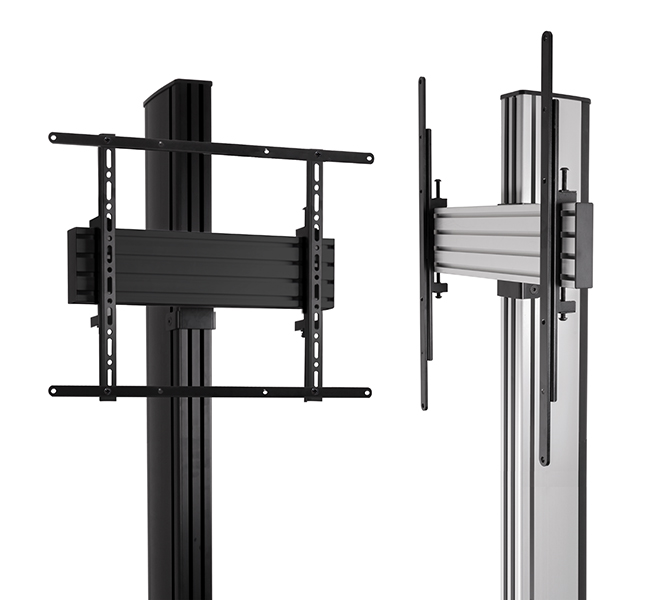

Arms feature levelling screws to adjust the screen height

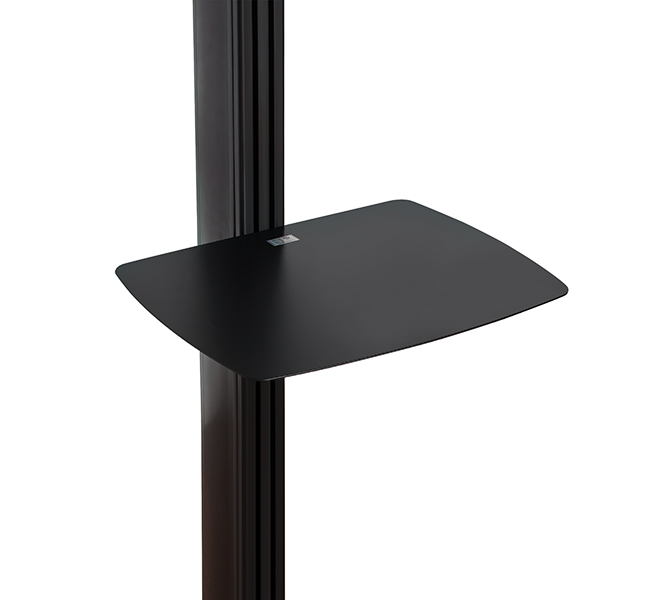

Collar compatible accessories such as shelves (available separately) can be
fitted directly to the column

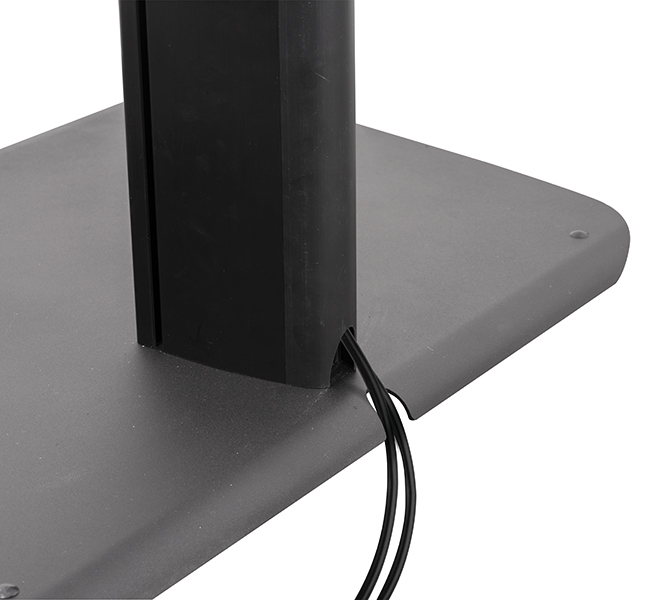

Integrated cable management for a neat and tidy installation
Safety screws help prevent unauthorised screen removal
Simple ‘hook-on’ screen installation

Recommended screen size: 47" (113.4cm) to 65" (165cm)
Max load: 35kg (77lbs) per screen
VESA® & non-VESA fixings as standard: up to 472mm x 400mm*
VESA® & non-VESA fixings with adaptors: up to 600mm x 400mm*
Dimensions: W: 890mm (35") H: 2441mm (96") D: 604mm (23.8")
Colour options (column and rails): Black or Silver

*As standard the maximum fixing dimension is 400mm (15.7"). Increase the
horizontal fixing to 600mm (23.6") using the included interface adaptor arms.
