Flat Screen Display Trolley / Stand

BT8504

For screens up to 75"




Designed for large screens mounted in landscape or portrait style, the BT8504 is ideal for all professional applications. The simple hook-on installation makes fitting a display to the trolley quick and easy. The BT8504 mounts screens with fixing patterns up to 455 x 400mm as standard and also includes adaptor arms for larger screens with VESA fixings up to 600 x 400. Non-marking braked castors and optional adjustable levelling feet are included for use as either a portable or freestanding solution.







BT8504



  • Flat screen trolley suitable for large screens

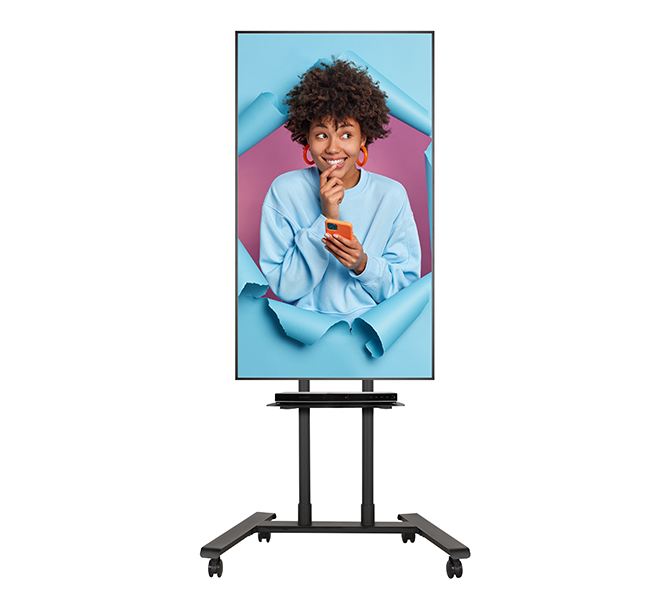

  • Can mount screens in a landscape or portrait orientation

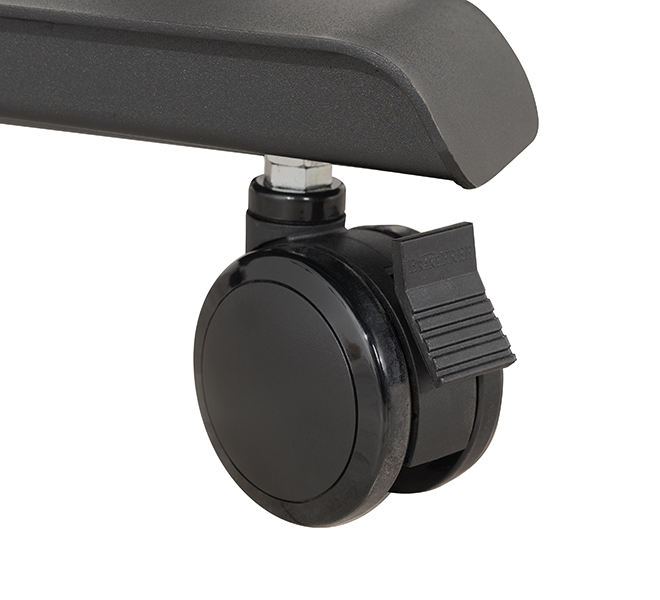

  • Includes non-marking 3” locking/braked castors & alternative levelling feet

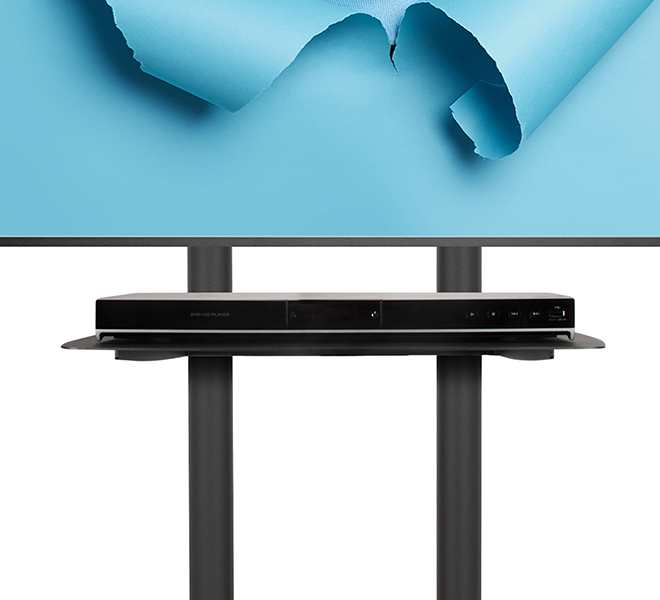

  • Shelves and other accessories can be fitted to the poles using Ø50mm
    accessory collars (available separately)

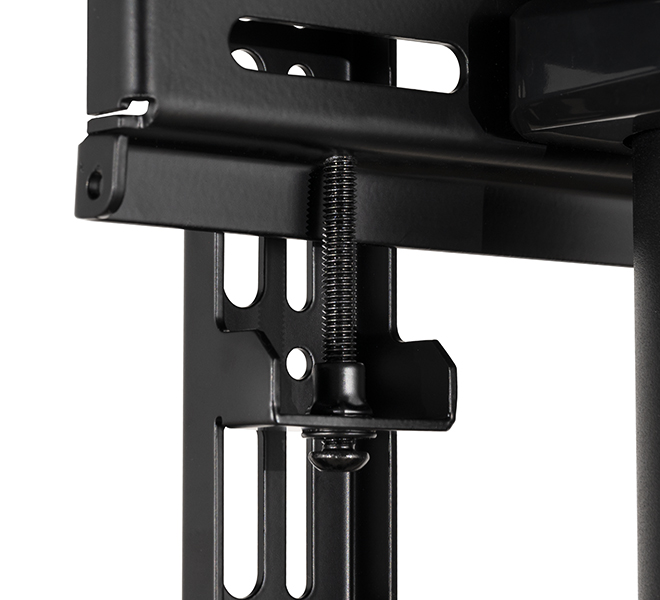

  • Safety screws help prevent unauthorised screen removal
  • Integrated cable management for a neat and tidy installation
  • Simple ‘hook-on’ installation
  • All mounting hardware included
  • Recommended screen size: up to 75" (190cm)
  • Max load: 70kg (154lbs)
  • VESA® fixings: up to 600mm x 400mm (with included adaptors)
  • Universal fixings: up to 455mm (18") x 400mm (15.7")
  • Dimensions (with castors): W: 1098mm (43.2") H: 1854mm (73") D: 740mm (29")
  • Colour option: Black

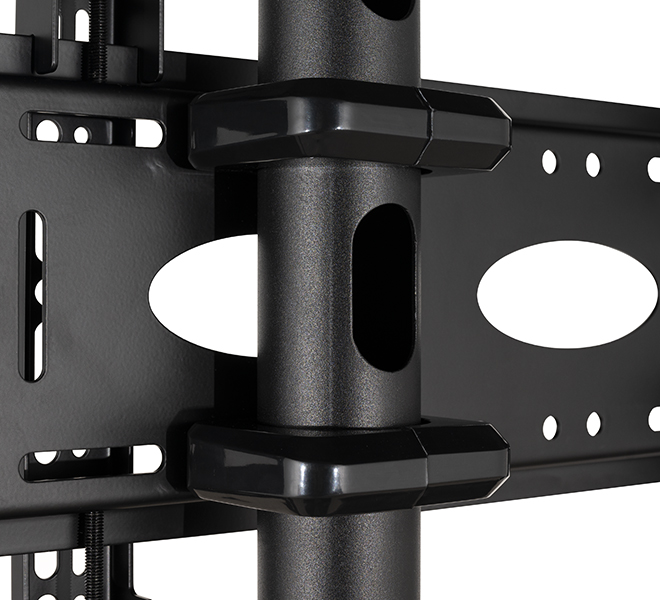

BT8504 - Universal design suitable for screens in portrait or landscape orientation BT8504 - Collar compatible accessories such as shelves (available separately) can be fitted directly to the poles BT8504 - Non-marking 3” locking / braked castors included BT8504 - Integrated cable management for a neat and tidy installation

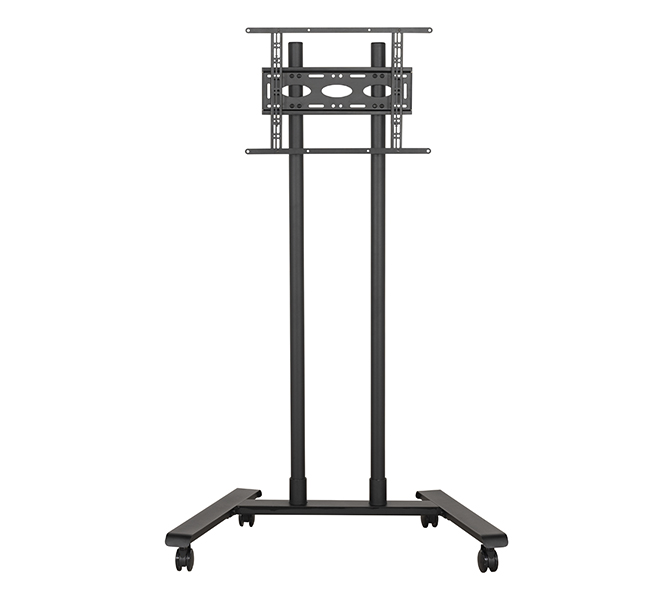

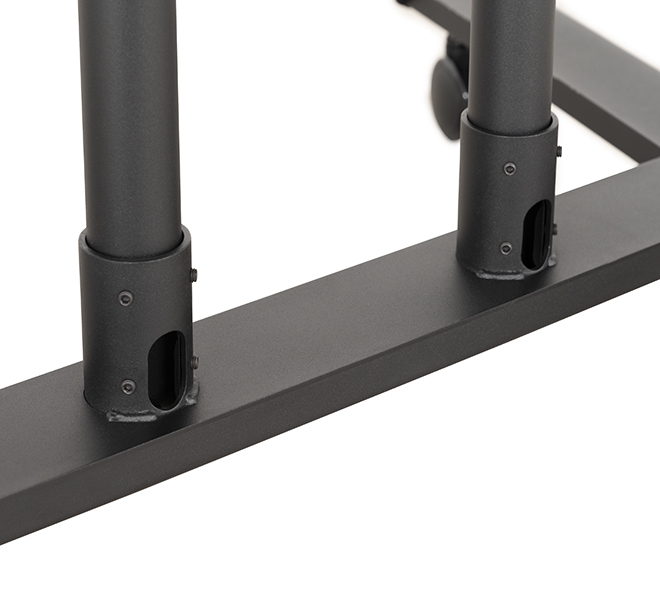

BT8504 - Front View BT8504 - Adaptors included for larger screens with VESA fixings up to 600 x 400 BT8504 - Locking Screws used to securely mount the screen in place BT8504 - Collar cover plates included for a clean aesthetic

Specification Sheet

Specification Sheet - English (PDF)

Specification Sheet - US (PDF)

Fiche de spécifications - Français (PDF)

Technisches Datenblatt - Deutsch (PDF)

Karta Specyfikacji - Polskie (PDF)



Installation Guide

Installation Guide (PDF)

Montageanleitung - Deutsch (PDF)



Technical Drawing

Technical Drawing (PDF)



Greensheet

Greensheet (PDF)
