Speaker Wall Mounts

BT1

With Tilt & Swivel

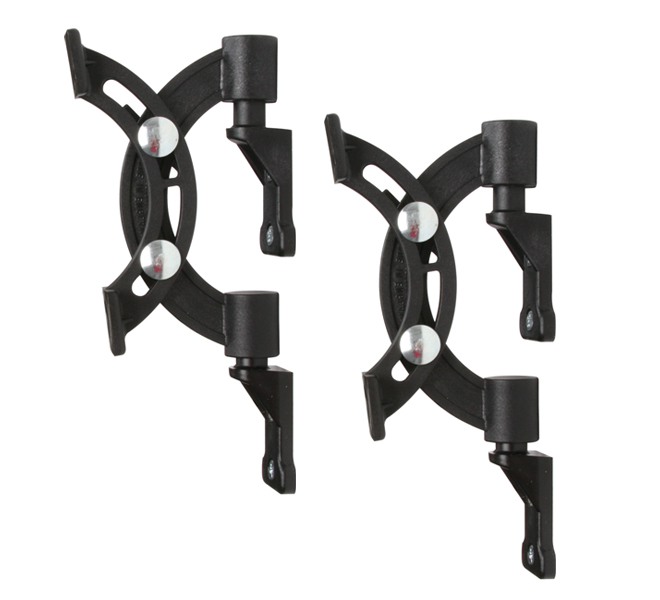

Designed to mount small to medium speakers to the wall, the BT1 is the original tilt and swivel mount. Design features such as thumbwheels for simple positioning of the speakers and a quick hook-on design for easy installation, these fully adjustable mounts are an ideal solution for wall mounting speakers up to 10kg. Supplied in pairs.






  • The original ‘tilt and swivel’ mounts
  • Designed for small to medium loudspeakers weighing up to 10kg
  • Moulded from glass-filled nylon for low resonance and durability
  • Simple 'hook-on' installation
  • All mounting hardware included
  • Made in the UK
  • Supplied in pairs
  • Maximum load: 10kg (22lbs)
  • Dist from Wall: 75mm (3”)
  • Tilt: +/-18°
  • Swivel: 180°
  • Colours Available: Black

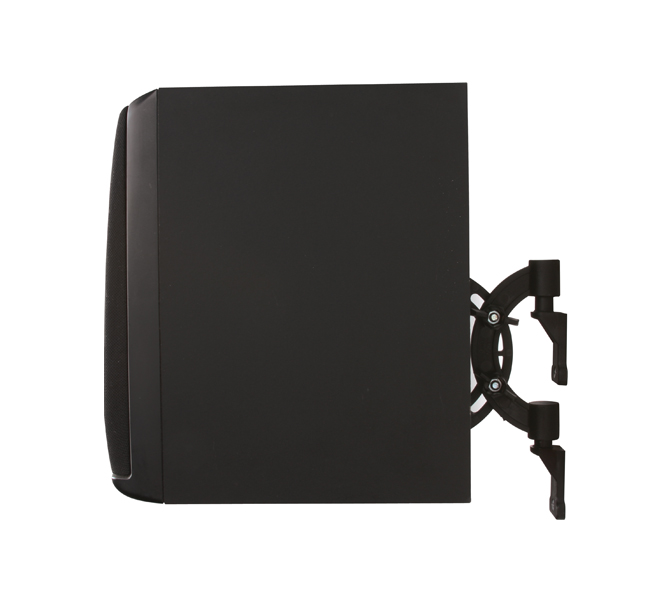

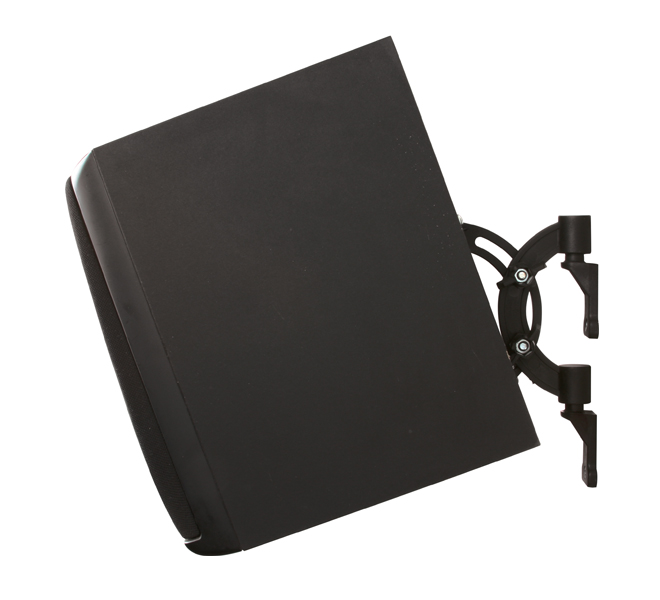

BT1 Tilt & Swivel Speaker Wall Mount - Side View BT1 Tilt & Swivel Speaker Wall Mount - with Speaker BT1 Tilt & Swivel Speaker Wall Mount - Tilted View

Assembly Leaflet

Installation Guide (PDF)

Specification Sheets

BT1 Specification Sheet (PDF)

BT1 US Specification Sheet (PDF - Imperial Units)
