Full Service Wall Mount for XXL Displays

BT9926

For XXL Screens





BT9926 is a dual rail, pop-out wall mount solution designed for extra large 21:9 ultra-wide signage displays. The screen is securely mounted across dual horizontal rails, for a straightforward hook-on installation. The mount features an easy to use push-to-release soft pop-out feature, which allows for easy access during servicing. Additionally, micro-adjustment thumb wheels enable precise screen alignment, ideal for recessed installations.





  BT9926 - Full Service Wall Mount for XXL Displays
  • Designed to wall mount 21:9 ultrawide signage displays
  • Universal design suitable for other extra-large screens over 80"
  • Tool-less micro-adjustment of +/-7mm
  • Pop-out system provides a safe and easy service access
  • Straightforward 'hook-on' installation
  • Cable management clips included to keep the installation tidy
  • Ideal for recess mounting
  • Features depth, height and lateral micro-adjustment
  • Keyhole fixings on wall plates for an easier installation
  • Safety screws help prevent unauthorised removal of screens
  • All mounting hardware included
  • Suitable use with: Jupiter Pana105T, Avocor AVL-1050-T & Viewsonic IFP105S displays
  • Recommended screen size: 80” (203cm) up to 120" (305cm)
  • Max load: 200kg (440lbs)
  • VESA® and non-VESA Fixings: up to 1600 x 800mm
  • Flat to wall depth: 146.5mm (5.7") (+/-7.5mm with micro-adjustment)
  • Popped out depth: 338.5mm (13.3") (+/-7.5mm with micro-adjustment)
  • Tool-less micro-adjustment: +/-7.5mm per corner
  • Colour (mounting rail): Black or Silver
  • Colour (VESA arms): Black

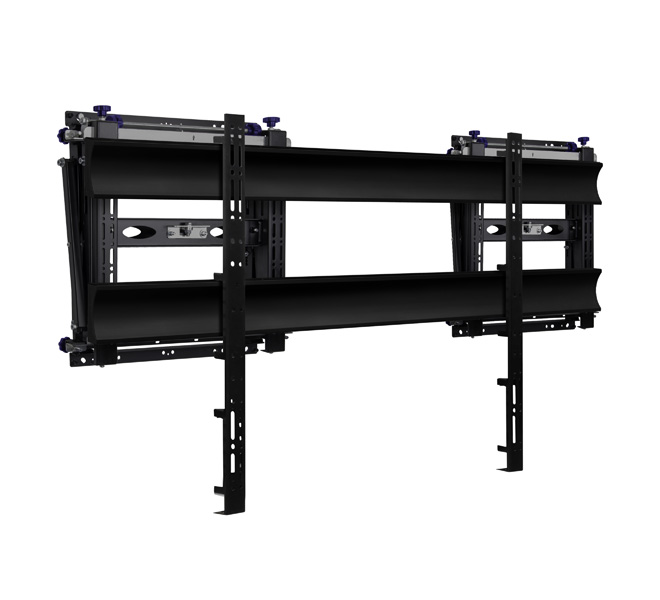

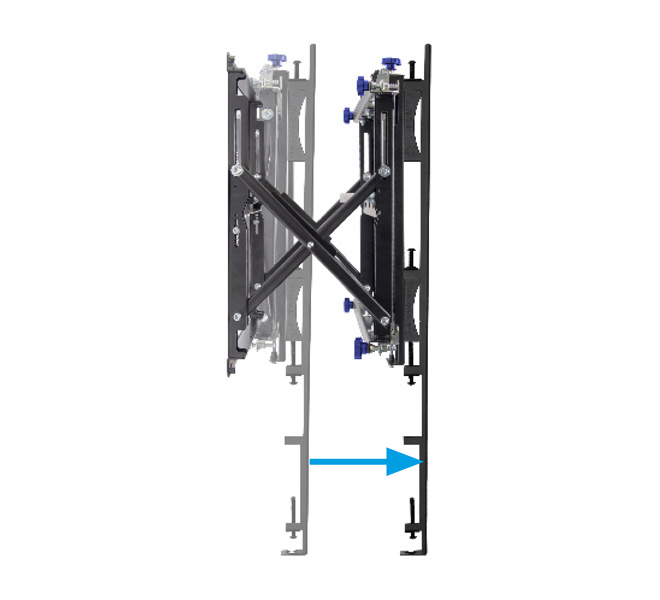

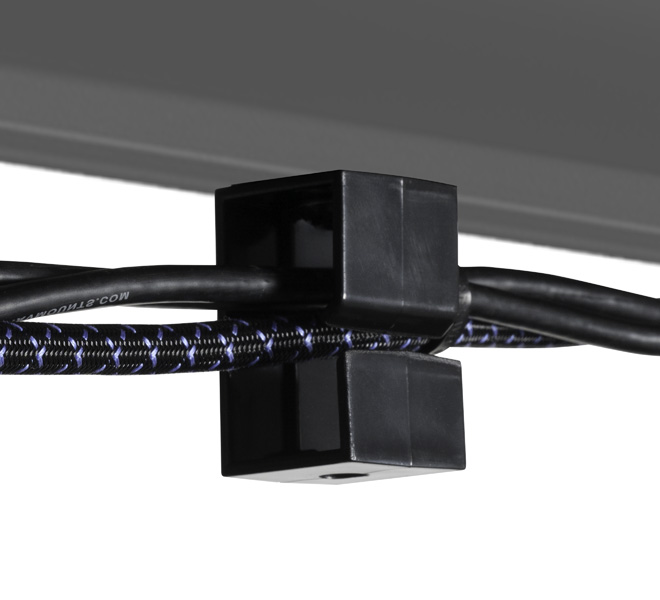

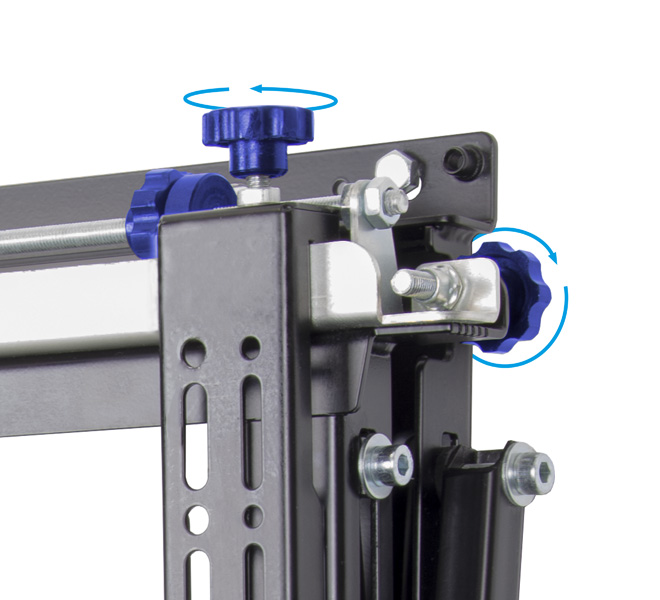

BT9926 - Full Service Wall Mount for XXL Displays BT9926 - Tool-less micro-adjustment BT9926 - Pop-out system for easy service access BT9926 - Includes Cable Management Clips

Specification Sheets

Specification Sheet - English (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)
