Bolt-Down Retractable Base dvLED Videowall Stand

BT9377

 Ideal for close to window retail installs




BT9377 Universal Bolt-Down dvLED Mounting System features a retractable base for easy service access to display screens. The universal design is compatible with all major dvLED brands and perfectly suits applications such as shop fronts and installations against windows. The retractable floor base enables seamless movement backwards of up to 400mm for easy servicing and maintenance of hardware. To configure your dvLED solution, Contact B-Tech's dedicated technical support team at technical@btechavmounts.com

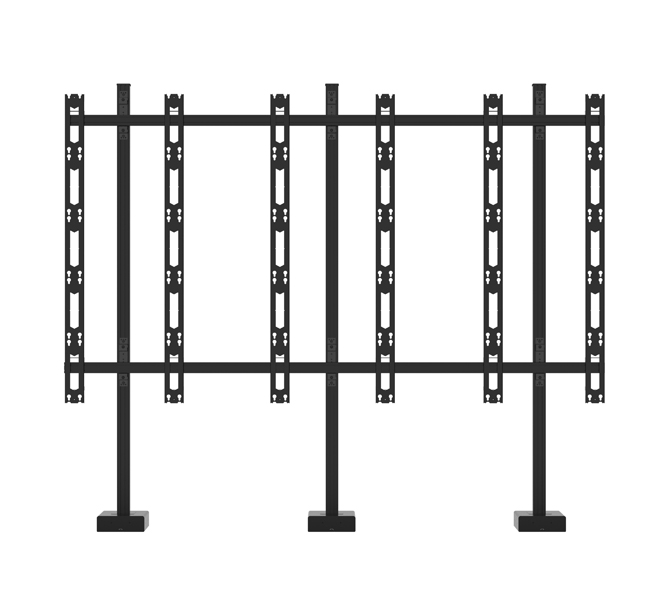

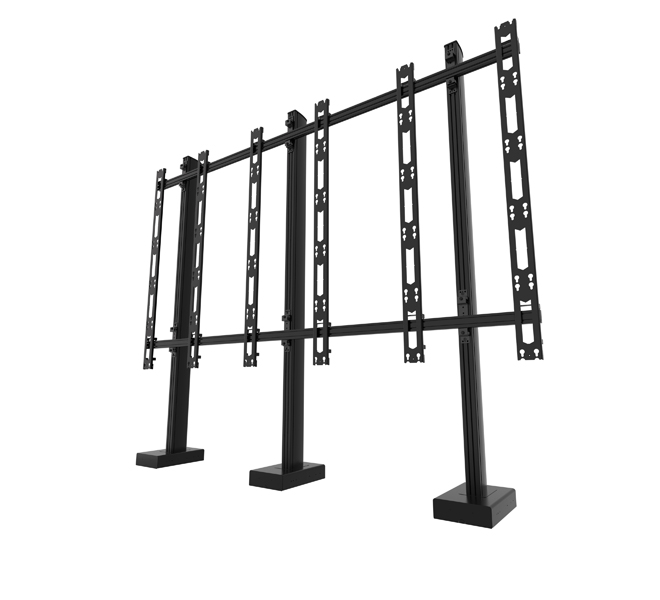

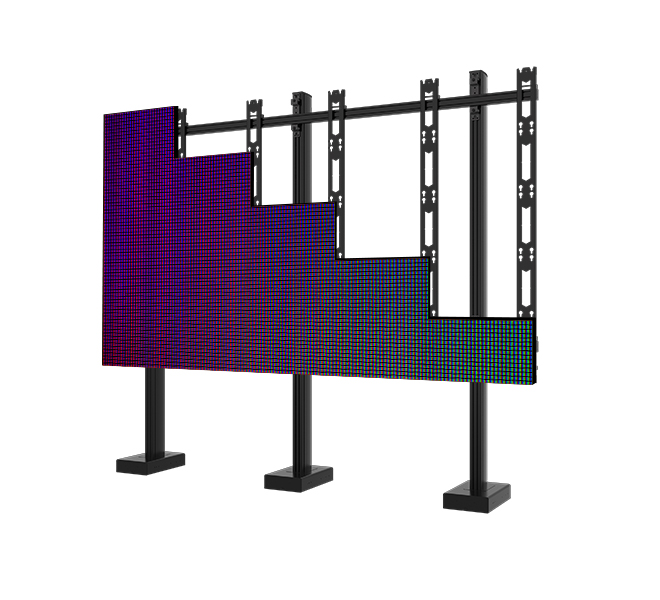

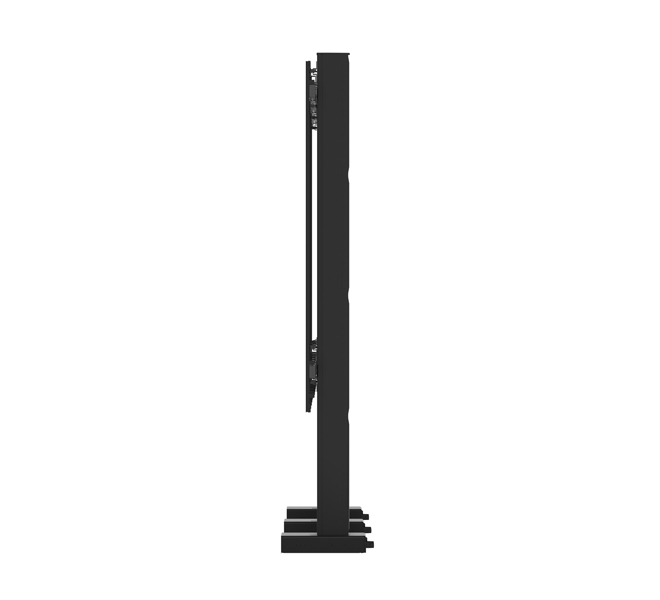

  BT9377 Bolt-Down Retractable Base dvLED Videowall Stand

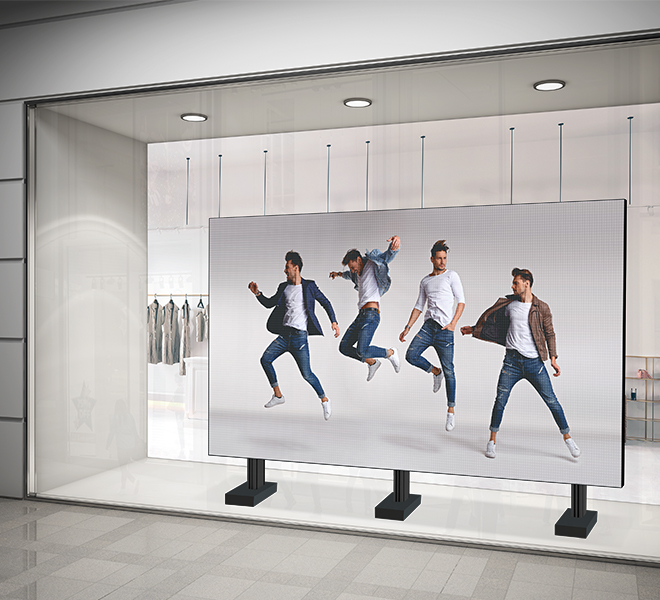

  • Ideal for shop fronts, close-to-the-window installations

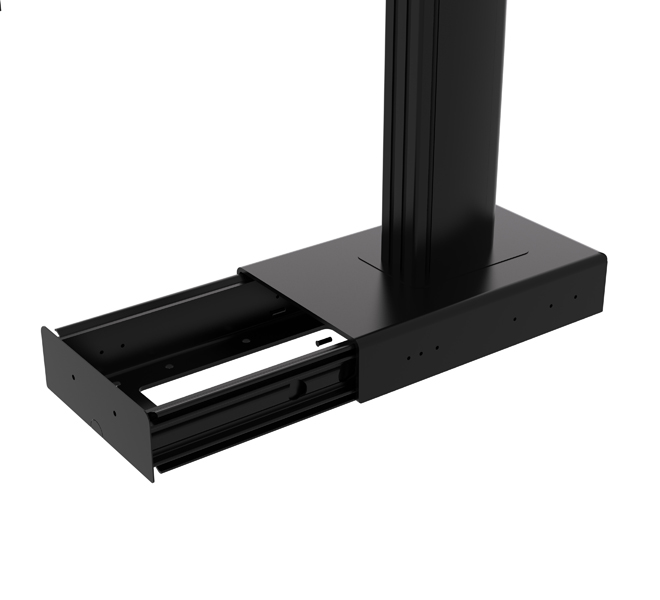

  • Sliding floor base retracts the System X column/display stand backwards
  • Simple 'hook-on' installation
  • B-Tech technical support available for configuration and quoting
  • Assembled from off-the-shelf components for fast order fulfilment
  • System can be extended to any required width for large installations
  • Open frame allows panel access for easy servicing and maintenance
  • Pre-assembly of major parts for quick and easy installation
  • Lockable mechanism
  • Internal storage area in base, ideal for power supplies, extension cord etc.
  • Integrated cable management
  • All mounting hardware included
  • Panel fixing method: Front mounted or Rear mounted
  • Max load: 150kg (331lbs) (per column)*
  • Base dimensions: W: 262mm (10.3") H: 88mm (3.4") D :426-832mm (17" - 33")
  • Maximum retraction: 400mm (15.7")
  • Colour: Black
  • For indoor use only
BT9377 Bolt-Down Retractable Base dvLED Videowall Stand BT9377 Bolt-Down Retractable Base dvLED Videowall Stand BT9377 Bolt-Down Retractable Base dvLED Videowall Stand BT9377 Bolt-Down Retractable Base dvLED Videowall Stand

Specification Sheet

Specification Sheet (PDF)

Specification Sheet - US (PDF)
