System X Adjustable Height & Depth Rail Mounting Bracket

BT8390-WFK6

Ideal for uneven walls




The BT8390-WFK6 is an adjustable wall bracket designed for the installation of dvLED video walls. As part of the System X Range, it is compatible with B-Tech's range of horizontal mounting rails and features both height and depth adjustment to give full, precise control over the install across every axis, no matter how uneven the wall surface is. Keyhole fixing points make installation quick and easy and the bracket is also compatible for mounting onto vertical columns and poles, meaning it can be used in floor stand applications as well as for wall mounted installations.






  • Designed to mount BT8390 horizontal rails and BT8393 vertical columns to walls and poles
  • Mounts the BT8390 horizontal rail just 37mm from the wall with a +/-10mm adjustable depth to ensure a flat to the wall installation
  • BT8390-WFK6 can also be pole mounted using B-Tech accessory collars
  • Keyhole mounting for easy installation
  • Micro-Adjustment of the height of the mounting rail with the supplied Hex Key allow for precision alignment
  • Easy adjustment of the depth of the rails with a 13mm spanner ideal for counteracting uneven walls
  • Integrated adjustment guides for straightforward alignment
  • All mounting hardware included
  • Wall to rear of rail distance: 37mm (1.5") (+/-10mm)
  • Dimensions Min: W: 56mm (2.20") H: 310mm (12.2") D: 59-673mm (2.32" - 26.49")
  • Adjustable Depth & Height: +/-10mm (1.5")
  • Max load (per bracket): 50kg (110.2lbs)
  • Brackets supplied (per pack): 1
  • Colour: Black

    *Use B-Tech's online configuration tool to automatically calculate the quantity required based on your configuration.

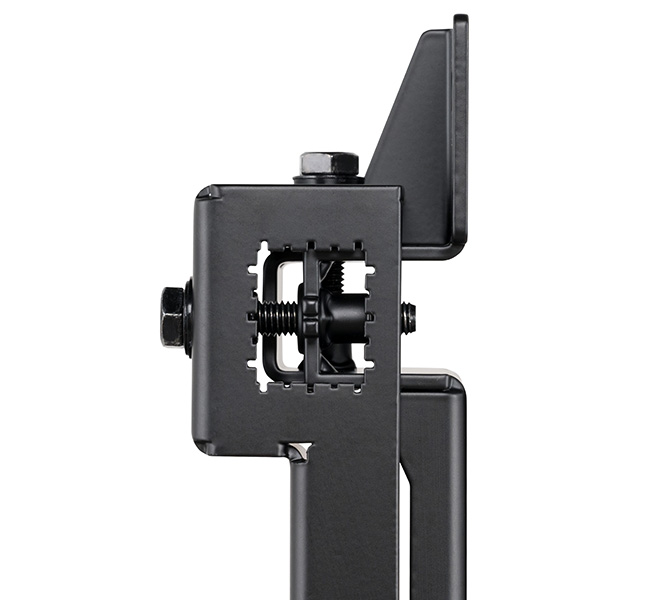

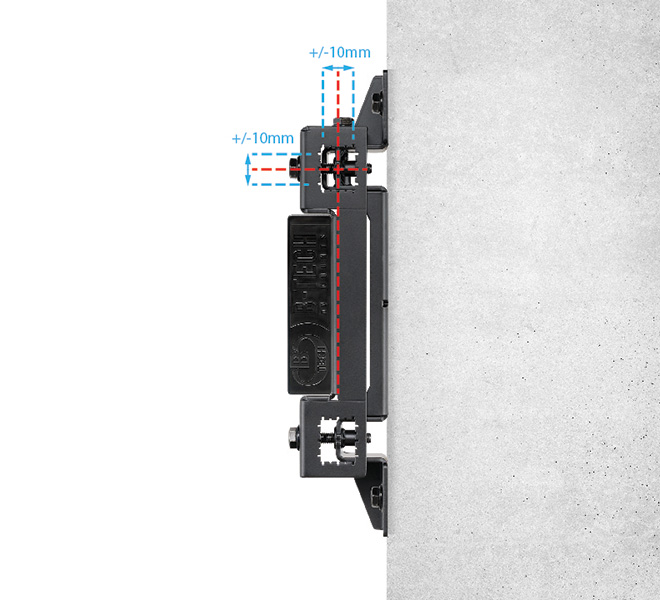

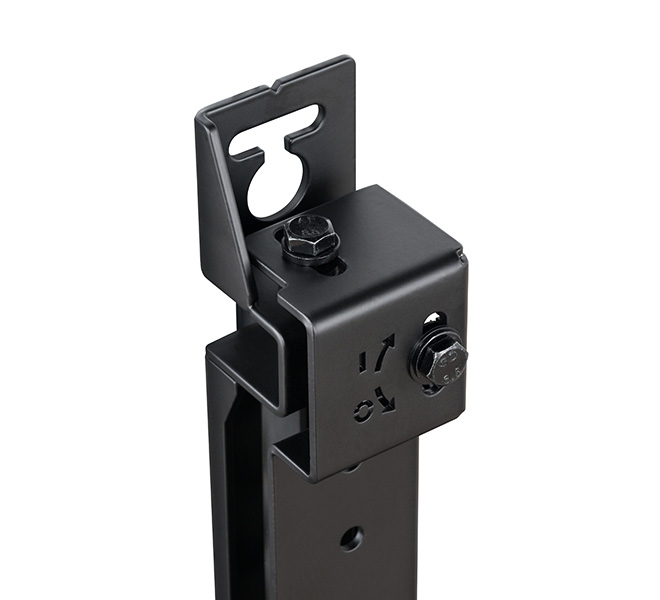

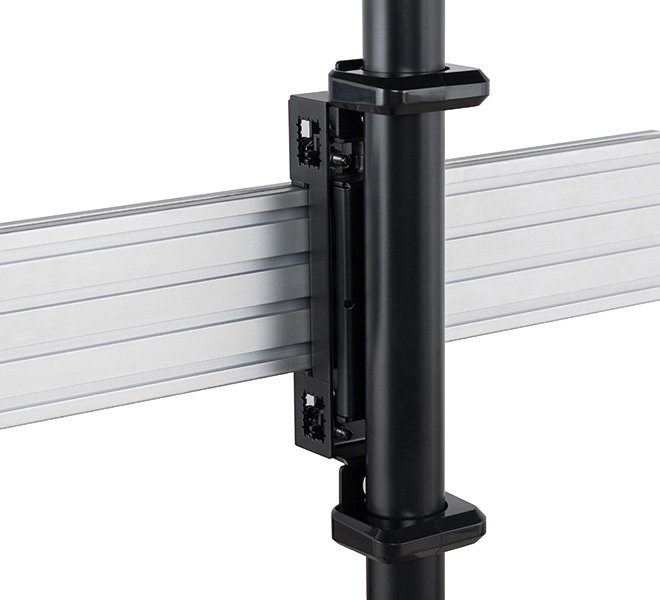

BT8390-WFK6 -Micro-Adjustment of the height & depth of the installation to counteract uneven walls BT8390-WFK6 - Integrated adjustment guides for straightforward alignment BT8390-WFK6 - Keyhole mounting allows for easy installation BT8390-WFK6 - Can also be pole mounted using B-Tech accessory collars

Product Overview Video

Specification Sheets

Specification Sheet (PDF) - English



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)
