System X™ Universal Interface Arms

BT8390-VESA600F

For Large Screens




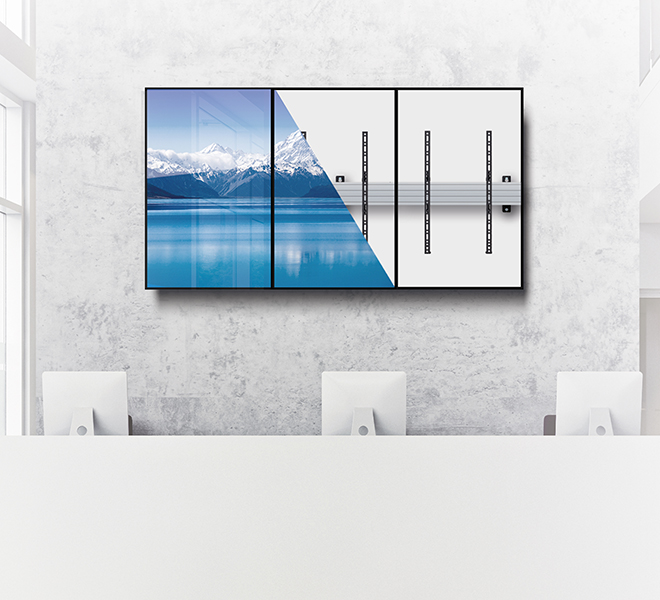

These interface arms are designed to mount large screens in a fixed position across a System X horizontal mounting rail. The universal design is compatible with a variety of different screens and allows them to be mounted in either landscape or portrait orientations. Levelling screws on each interface arm provide postinstallation height adjustment and a mounted depth of 48mm from the wall allows easy access for cables and connectors.






  • Interface arms capable of supporting substantial loads
  • Designed to be mounted on a BT8390 horizontal mounting rail
  • Suitable for landscape or portrait mounting
  • Lateral adjustment - position arms anywhere along the length of the rail
  • Includes levelling screws to adjust the screen height
  • Safety screws help prevent unauthorised removal of screens
  • Simple ‘hook-on’ installation
  • Recommended screen size (landscape): 50" (127cm) and over
  • Recommended screen size (portrait): 42" (106.7") and over
  • Max load: 70kg (154.3lbs)
  • VESA® & non-VESA fixings: up to 600mm (23.6")* (vertical dimension)
  • Depth (when wall mounted): 48mm (1.9")
  • Colour: Black

    *The VESA specification of the BT8390-VESA600F refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary.

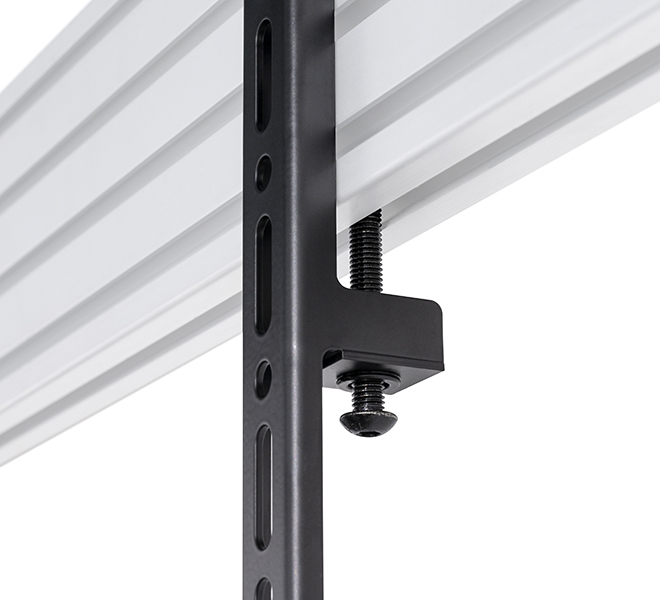

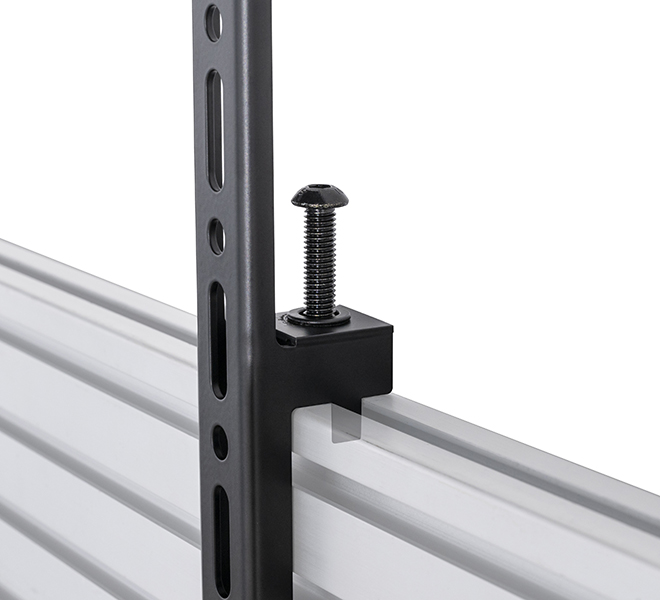

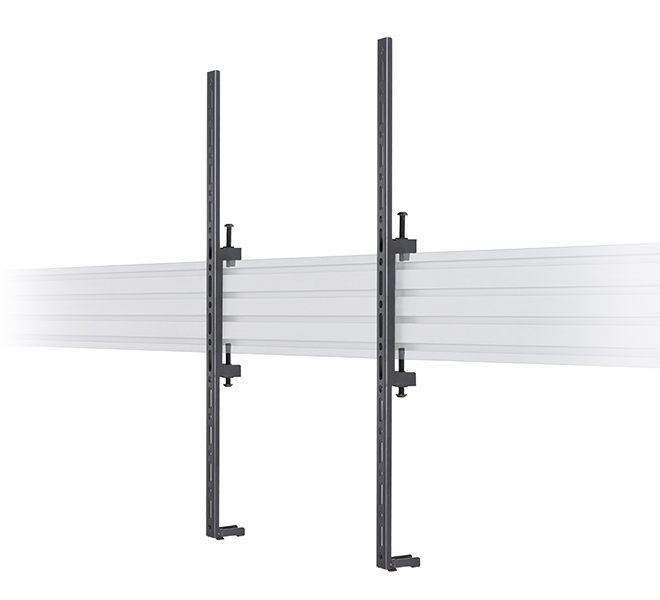

BT8390-VESA600F - System X™ Universal Interface Arms Arms feature levelling screws to adjust the screen height Safety screws help prevent unauthorised removal of screens BT8390-VESA600F - System X™ Universal Interface Arms
