Ultra-Slim Universal Flat Screen Wall Mount

BT8220

For Extra-Large Screens




Designed for extra-large sized screens up to 70kg, the ultra-slim BT8220 mounts screens just 14mm from the wall and features post installation screen alignment, B-Tech's "On Wall Levelling System" and simple 'hook-on' installation to make screen mounting as quick and simple as possible. The BT8220 also features B-Tech's patented 'Torsion-Lock' security to help prevent un-authorised removal of the screen. All mounting hardware included.






  • Ultra-slim design mounts screens only 14mm from the wall
  • Includes unique ‘Torsion Lock’™ , security locking screws and Allen key to prevent unauthorised removal of the screen
  • Features OWLS™ (On Wall Levelling System) to allow the wall plate to be levelled once mounted, eradicating the need to re-drill the wall
  • Suitable for concrete or brick walls
  • Post installation screen alignment for perfect screen positioning
  • Security locking screws, Allen key and locking bars provided for a secure installation
  • Supplied pre-assembled to reduce install times
  • Simple ‘hook-on’ installation
  • All mounting hardware included
  • Recommended screen size: up to 80” (203cm)
  • Max load: 70kg (154lbs)
  • Universal fixings: up to 840mm (33") x 500mm (19.7")
  • VESA® compatibility: up to 800 x 500
  • Distance from wall: 14mm (0.5")
  • Colour: Black

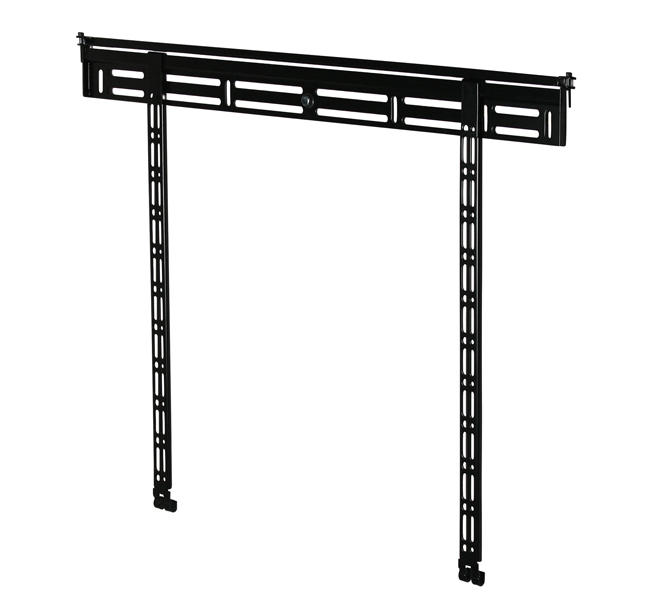

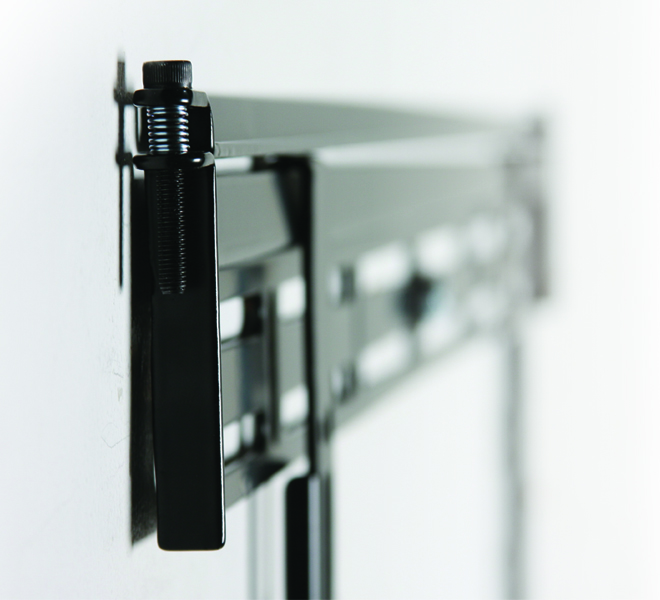

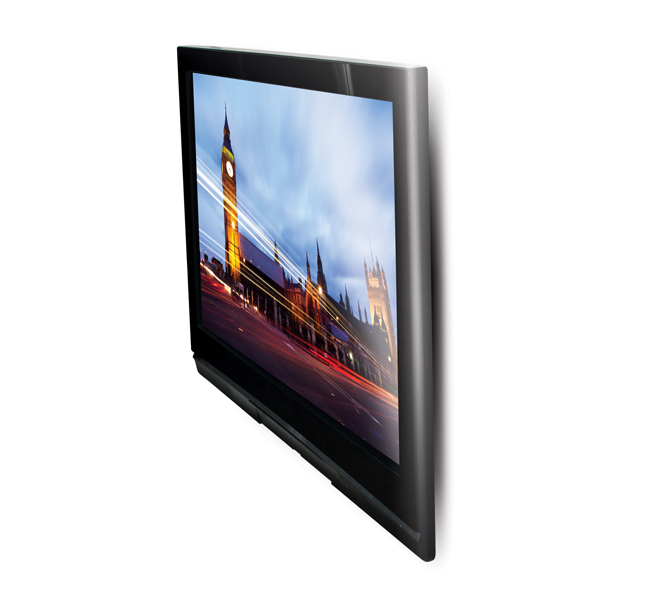

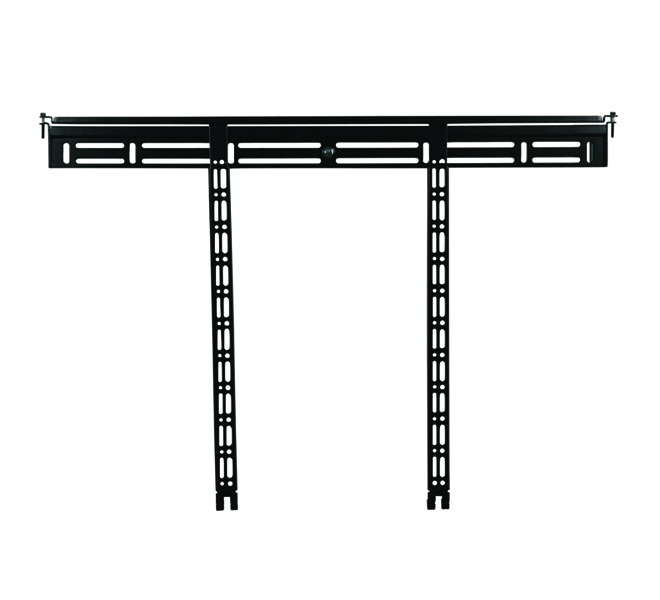

BT8220-PRO - Ultra-Slim Flat Screen Wall Mount BT8220-PRO - Ultra-Slim Flat Screen Wall Mount - with Screen BT8220-PRO Ultra-Slim Flat Screen Wall Mount - Front View BT8220-PRO - Ultra-Slim Flat Screen Wall Mount - Ultra-Slim design
