Ultra-Slim Universal Flat Screen Wall Mount

BT8210

For Large Screens




Designed for medium sized screens up to 50kg, the ultra-slim BT8210 mounts screens just 14mm from the wall and features post installation screen alignment, B-Tech's "On Wall Levelling System" and simple 'hook-on' installation to make screen mounting as quick and simple as possible. The BT8210 also features B-Tech's patented 'Torsion-Lock' security to help prevent un-authorised removal of the screen. All mounting hardware included.






  • Ultra-slim design for a close to the wall installation
  • Includes unique ‘Torsion Lock’™ , security locking screws and Allen key to
    prevent unauthorised removal of the screen
  • Features OWLS™ (On Wall Levelling System) to allow the wall plate to be
    levelled once mounted, eradicating the need to re-drill the wall
  • Suitable for concrete or brick walls
  • Lateral adjustment of screen once mounted
  • Security locking screws, Allen key and locking bars provided for a secure installation
  • Supplied pre-assembled to reduce install times
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recommended screen size: up to 55” (140cm)
  • Max load: 50kg (110lbs)
  • Universal fixings: up to 440 (17.3") x 400mm (15.7")
  • VESA® compatibility: up to 400 x 400
  • Distance from wall: 14mm (0.5")

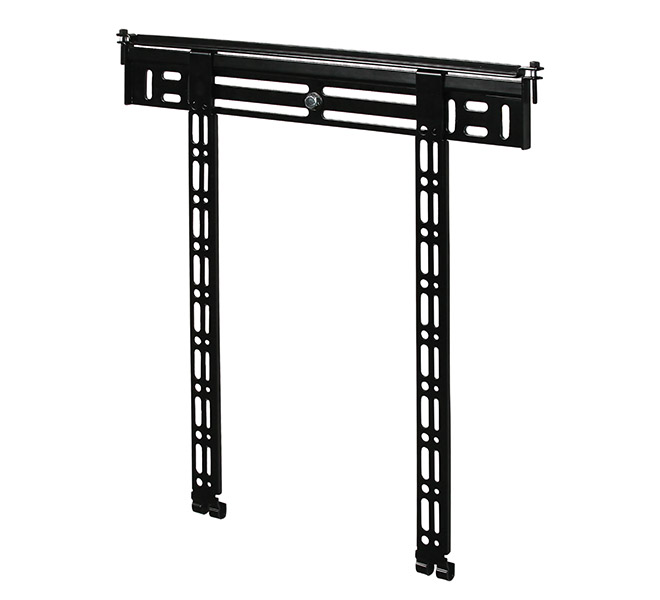

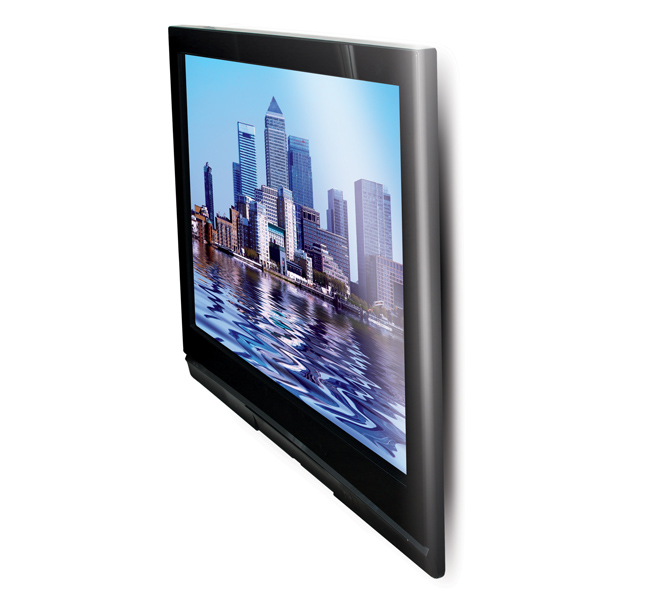

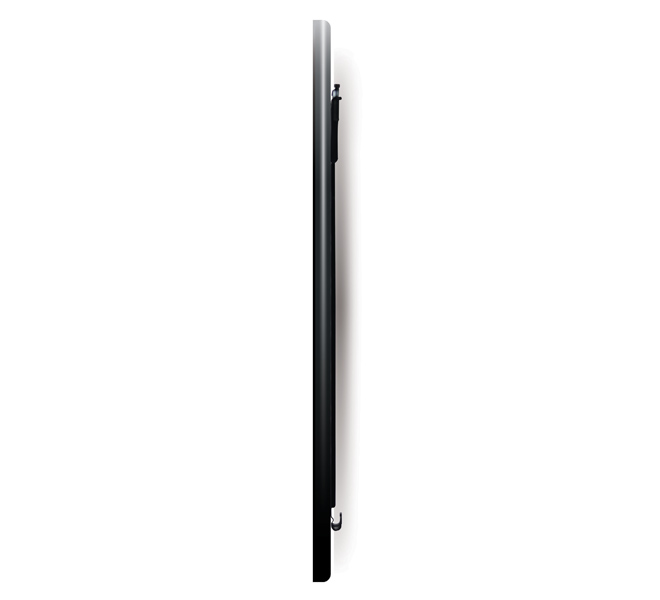

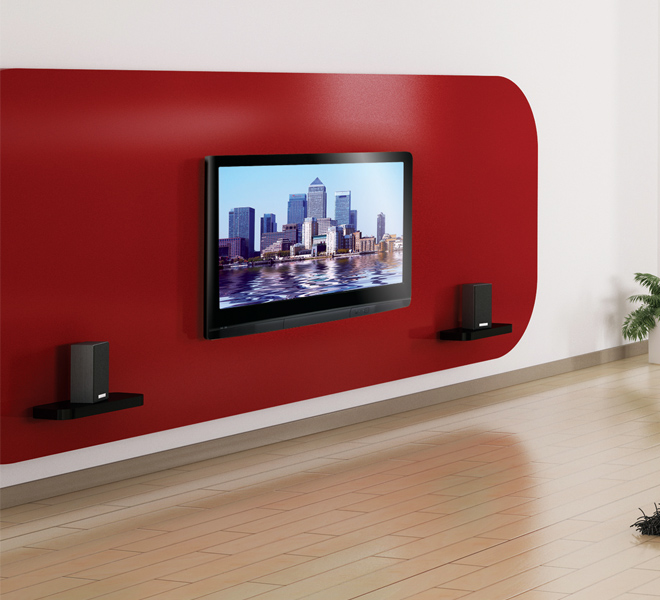

BT8210 - Ultra-Slim Universal Flat Screen Wall Mount BT8210 - Ultra-Slim Universal Flat Screen Wall Mount BT8210 - Ultra-Slim Universal Flat Screen Wall Mount - Low Profile Design BT8210 - Ultra-Slim Universal Flat Screen Wall Mount - Lifestyle Image

Specification Sheets

Specification Sheet - English (PDF)

Specification Sheet - US (PDF)

产品规格书 — 中文(PDF)

Fiche de spécifications - Français (PDF)

Specificatieblad - Nederlands (PDF)

Hoja de especificaciones - Español (PDF)

Spezifikationsblatt - Deutsch (PDF)



Installation Guides

Installation Guide (PDF)



Technical Drawings

Technical Drawing (PDF)

Technical Drawing (DXF)
