Flat Screen Wall Mount with Tilt and Swivel

BT7518

For Small Screens



  • Designed for screens up to 23” (58cm) / 20kg (44lbs)
  • Fits screens with VESA mounting patterns:
    75mm x 75mm and 100mm x 100mm
  • Features +17° / -10° tilt and 50° swivel (or 130° if mounted onto a pole)
  • Simple ‘hook-on’ installation with all mounting hardware included



Maximum weightMaximum screen size
20kg (44lbs) 23" (58cm)
  BT7518 - Tilt and Swivel Flat Screen Wall Mount
  • Designed for small screens up to 23” (58cm) / 20kg (44lbs)
  • Fits screens with VESA mounting patterns:
    75mm x 75mm and 100mm x 100mm
  • Features +17° / -10° tilt and 50° swivel (or 130° if mounted onto a pole)
  • 360° rotation for easy screen levelling and to allow
    screen to be mounted in landscape or portrait style
  • Security locking screws & Allen key provided for a secure installation
  • Features ‘OWLS’™ On Wall Levelling System
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Max weight: 20kg (44lbs)
  • Distance from wall: 93mm (3.7”)
  • VESA Compatibility: 75 x 75, 100 x 100
  • Tilt: +17°, -10°
  • Swivel: 50° (or 130° if mounted onto a pole)
  • Colours Available: Piano Black, Silver
  • Community Design Number: 001713280-0009
  • Registered Design Number: 4003649

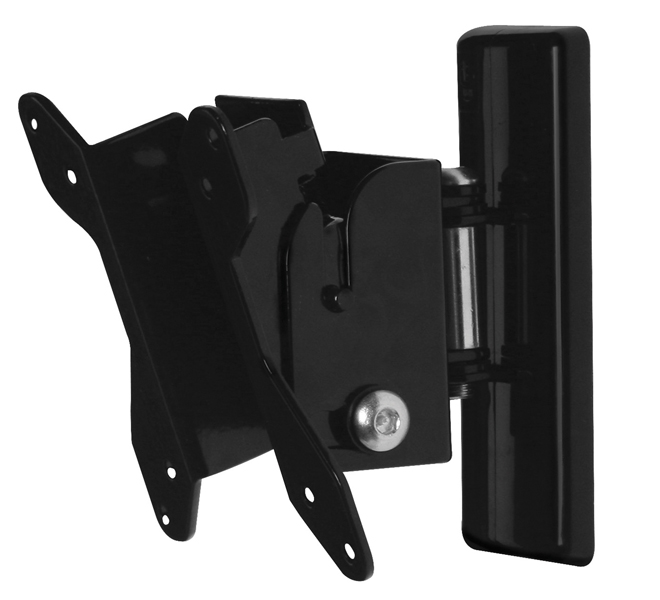

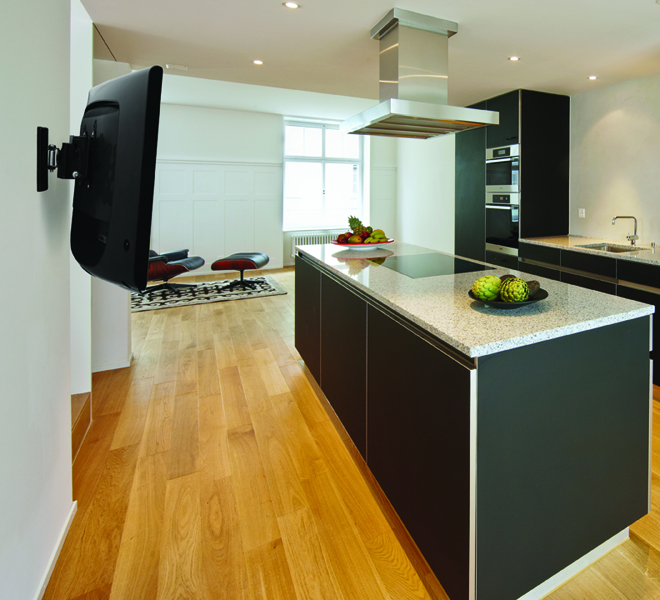

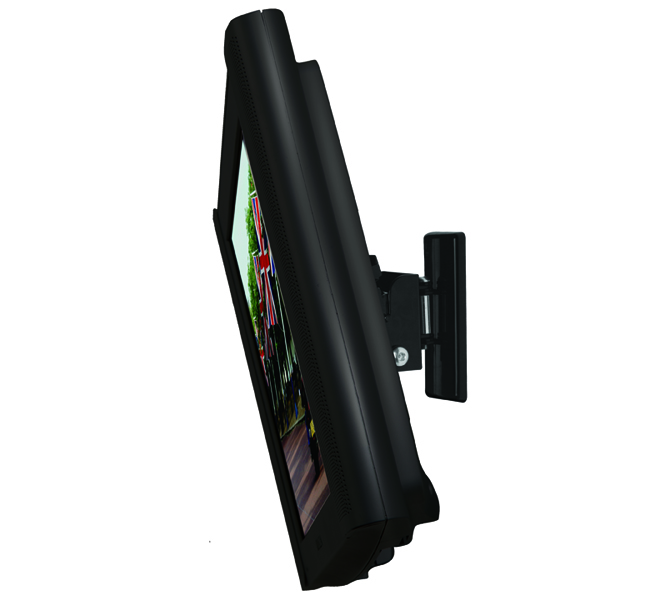

BT7518 - Tilt and Swivel Flat Screen Wall Mount - Side View BT7518 - Tilt and Swivel Flat Screen Wall Mount - with Screen BT7518 - Tilt and Swivel Flat Screen Wall Mount - Lifestyle Image
