Double Arm Flat Screen Wall Mount

BTV504

With Tilt and Swivel




Designed to wall mount small to medium sized screens, this double arm wall mount features a tilting interface and three swivel points, allowing quick and easy repositioning of screens as required - whether folded flat against the wall at a depth of 79mm or at maximum extension. Cable management is included to help make a neat and tidy mounting solution which is ideal for home installations as well as commercial applications.

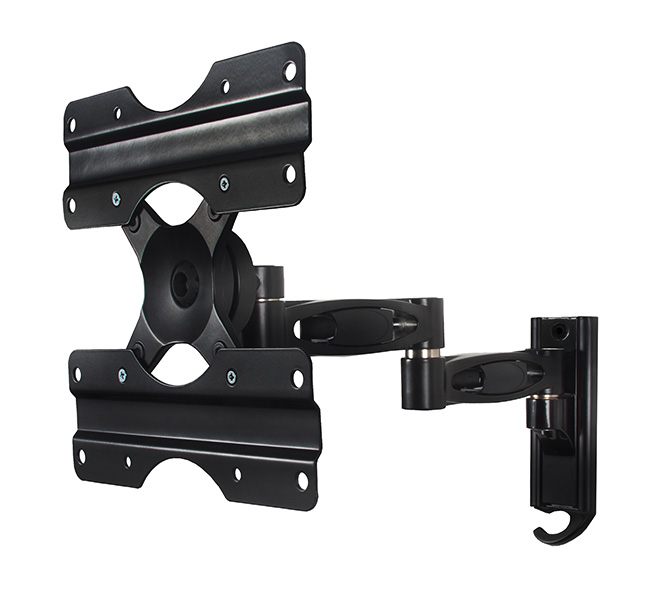

  BTV504 Ventry™ Double Arm Flat Screen Wall Mount with Tilt and Swivel
  • Easy tilt and swivel adjustment
  • Features three swivel points: 180° at wall, 360° at central pivot and 240° at interface
  • Screen rotation allows screen to mounted in landscape or portrait orientation
  • Folds flat to the wall
  • Integrated cable management
  • Integrated spirit level for easy wall plate levelling during installation
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recommended screen size: up to 47” (119cm)
  • Max load: 25kg (55lbs)
  • VESA® compatibility: up to 200 x 200
  • Tilt: +/-15°
  • Swivel: 180°
  • Screen rotation: 360°
  • Distance from wall: Min: 79mm (3”) - Max: 385mm (15”)
Integrated Cable Management and Spirit Level Included Folds flat to the wall with a distance of only 79mm Features up/down tilt plus 3 pivot points Interface allows screen rotation of 360°

Specification Sheet

Specification Sheet (PDF)
