Single Arm Flat Screen Wall Mount with Tilt and Swivel

BTV113

For Small Screens



Designed to wall mount small sized screens, this single arm wall mount features a rotating interface with tilt and swivel, allowing quick and easy repositioning of screens as required - the mount can display the screen folded flat against the wall or up to its maximum extension of 240mm. Cable management is included to help make a neat and tidy mounting solution which is ideal for home installations as well as commercial applications.



Maximum screen sizeMaximum weight
23" 15kg

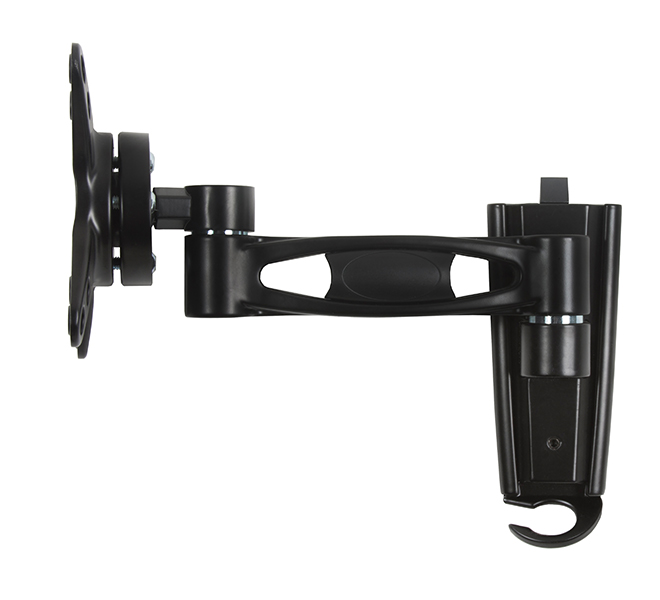

  BTV113 Ventry™ Single Arm Flat Screen Wall Mount with Tilt and Swivel
  • Single arm for extended reach
  • Folds flat to the wall
  • Interface features tilt, swivel and screen rotation
  • Integrated cable management
  • Integrated spirit level for easy wall plate levelling during installation
  • Simple 'hook-on' installation
  • All mounting hardware included
  • Screen size: up to 23”
  • Max. weight: 15kg
  • Dist. from wall: Min:77mm Max: 240mm
  • VESA compatibility: 75 x 75mm, 100 x 100mm
  • Screen Rotation: 360°
  • Tilt: +/-15°
  • Swivel: 180°
  • Colours available: Black
Integrated Cable Management and Spirit Level Included Folds flat to the wall with a distance of only 77mm Features up/down tilt plus 2 pivot points Interface allows screen rotation of 360°

Product Specification Sheet (PDF) - 2016 Version

Product Specification Sheet (PDF) - Previous Version

Assembly Leaflet (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)
