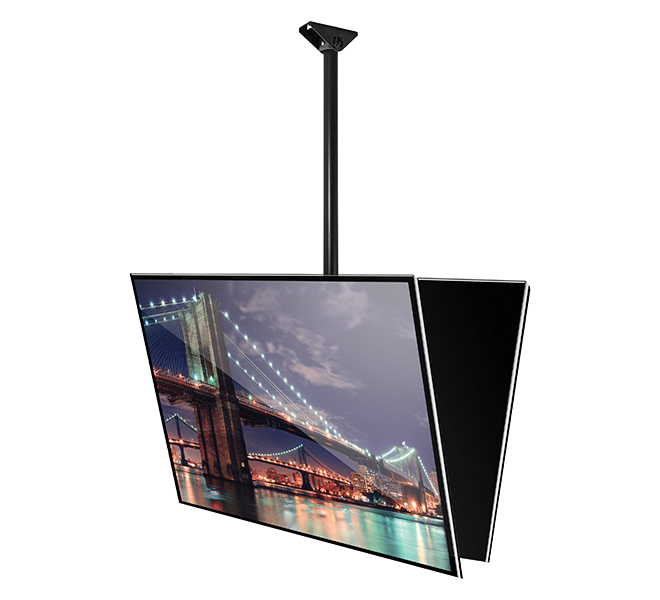

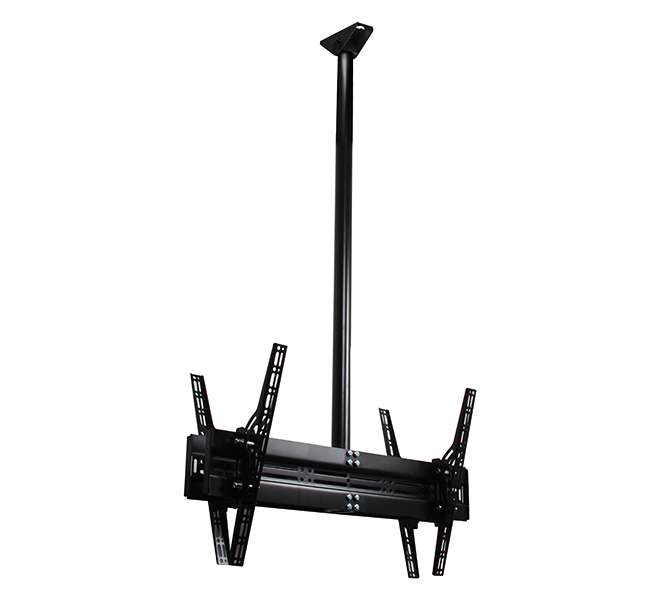

• Flat screen ceiling mount designed for screens
  up to 65” (165cm) / 35kg (77lbs) per screen
• Fits screens with mounting patterns up to 825mm (32.5”) x 500mm (19.7”)
  including VESA® fixings up to 800 x 500mm

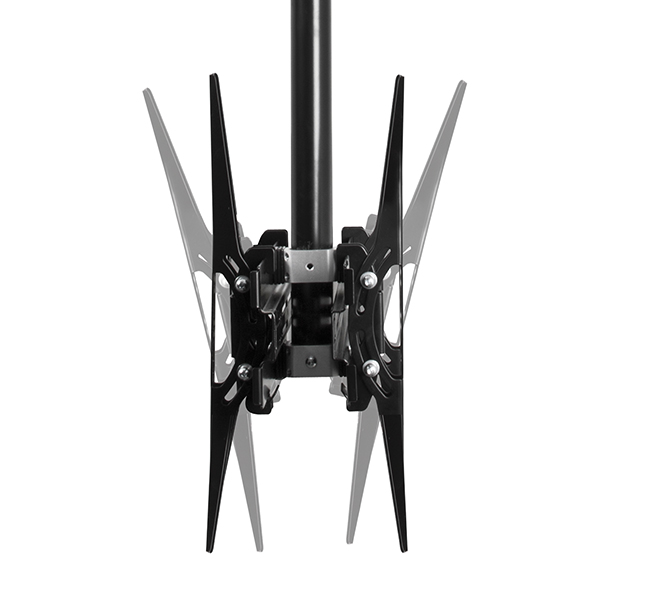

• Easy tilt adjustment +/-15°
• Unique ‘Torsion-Tilt’ mechanism
• Integrated cable management

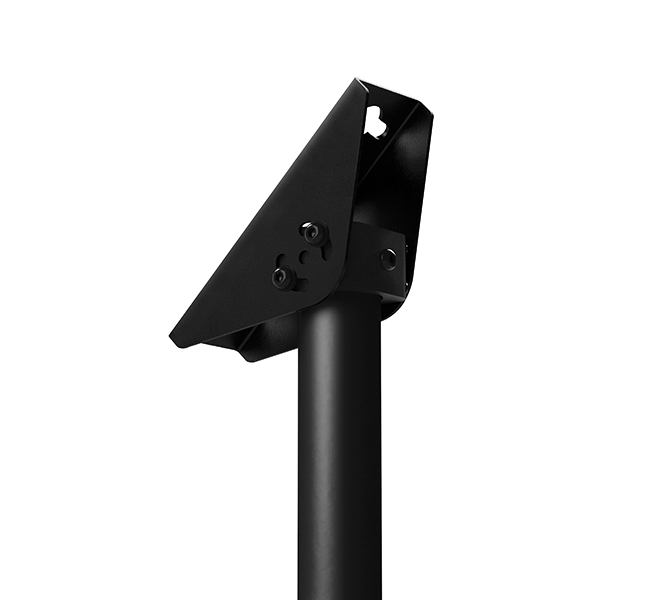

• Pole can be tilted up to 90° for mounting on angled ceilings
• Security locking screw and Allen key provided
• Supplied with safety bolt and locking bars for a secure installation
• Ceiling fixings and all mounting hardware included

• Simple ‘hook-on’ installation

• Available in 3 lengths:
  BT8429-100: 953mm (37.5”) (to centre of mount)
  BT8429-150: 1453mm (57.2”) (to centre of mount)
  BT8429-200: 1953mm (76.9”) (to centre of mount)
• Available with Black or Chrome Poles

• Max. Screen Size: 65" (165cm)
• Max. Weight Per Screen: 35kg (77lbs)
• Tilt: +/-15°
• Colours available: Black with Black Poles, Black with Chrome Poles
• Ceiling drop:
  BT8429-100: 953mm (37.5”) (to centre of mount)
  BT8429-150: 1453mm (57.2”) (to centre of mount)
  BT8429-200: 1953mm (76.9”) (to centre of mount)
