Fixed Floor Base for System X

BT8380-FFB

 Ideal for Retail Installs




Designed to securely fix System X installations to the floor, the BT8380-FFB Fixed Floor Base attaches directly to any BT8380 vertical column to create a fixed position mounting solution with a minimal footprint. Using a 6mm thick steel plate, this base is strong enough to support loads of up to 200kg per column and is ideal for installations where floor space is limited, such as retail applications which require screens to be mounted closer to walls or shop windows.





  BT8380-FFB - Fixed Floor Base for System X
  • Small footprint for an un-obtrusive installation into confined areas
  • Heavy duty steel capable of supporting substantial loads
  • High-end aesthetic quality
  • Ideal for retail applications where floor space is limited such as in shop windows or for close to the wall displays
  • Can be used for large scale video wall installations in straight or curved configurations - ideal for applications such as control rooms
  • Can be used for a single column installation of up to 4 screens tall*
  • Must be used with a BT8380 Vertical Column
  • Comes included with any BT8372 Bolt Down Video Wall Stands
  • Integrated cable management
  • Available in Black
     *Dependent on screen size and weight
  • Max Load: 200kg (per column)*
  • Plate Thickness: 6mm
  • Bases Supplied: 1
  • Colour: Black
     *No more than 100kg should be mounted at a height above 1.2m - see assembly leaflet for more info

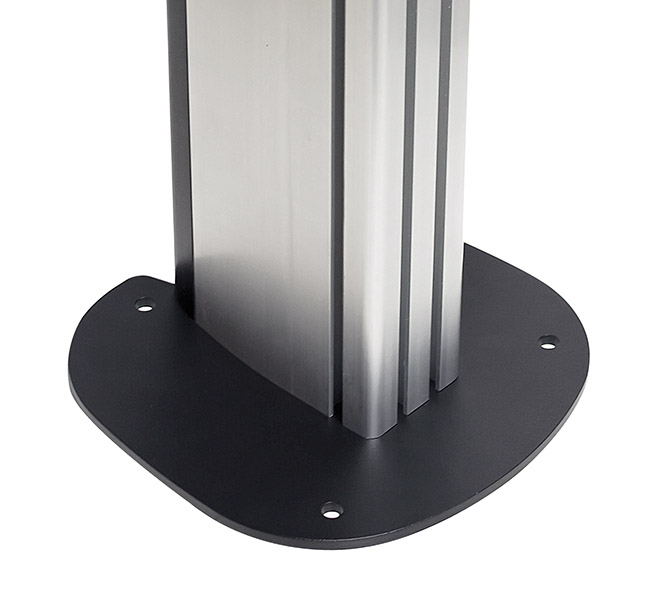

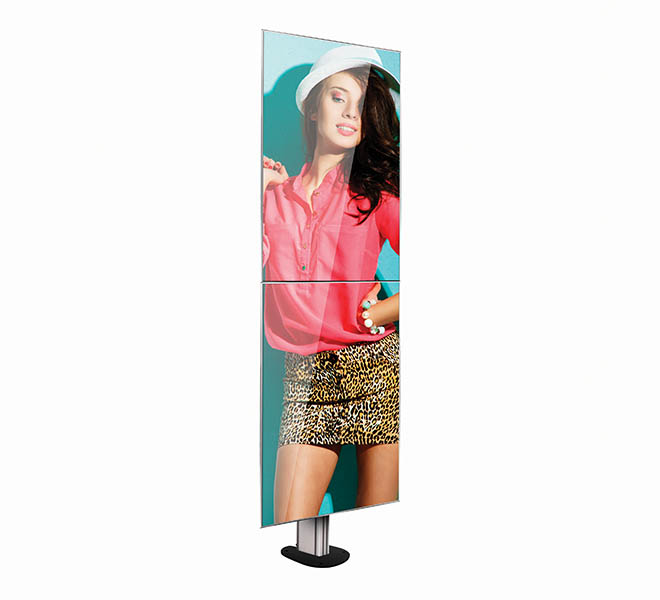

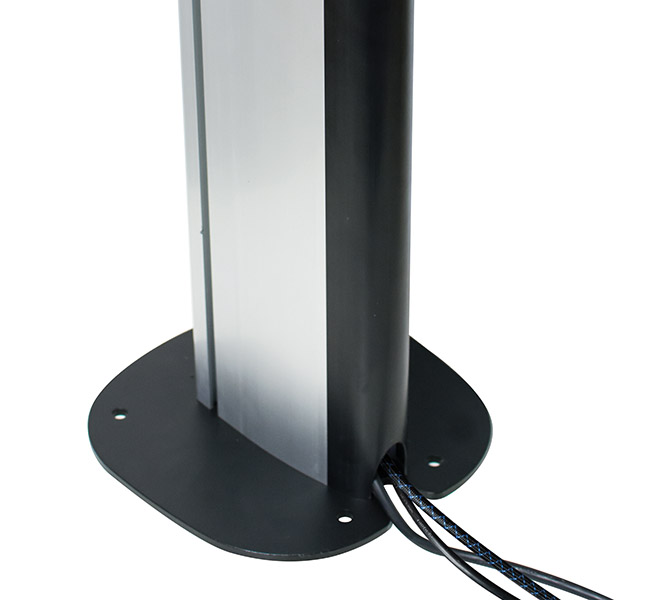

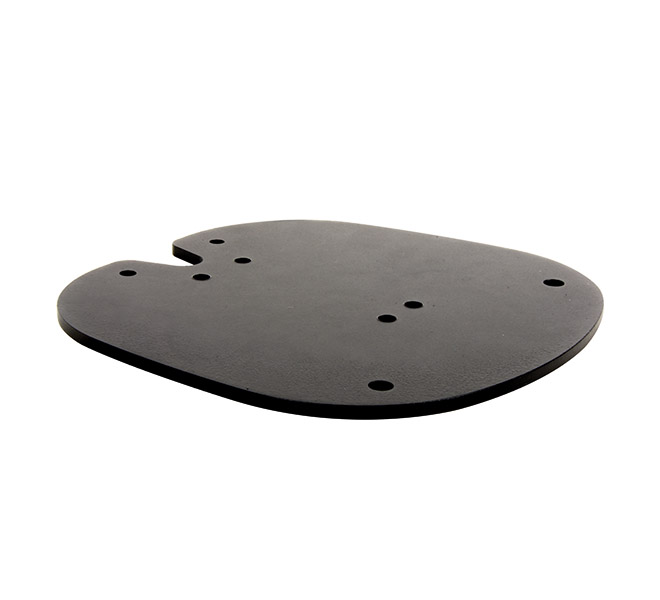

BT8380-FFB - Fixed Floor Base for System X BT8380-FFB - Fixed Floor Base for System X On Column BT8380-FFB - Fixed Floor Base for System X Cable Management BT8380-FFB - BT8372 1x2 Installation
