Universal Video Wall Mounting System

BT8340

For wall mounting video walls

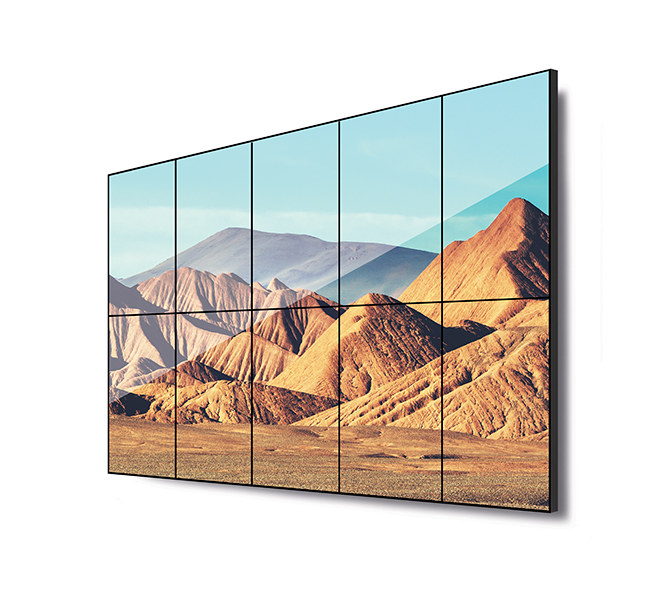

The BT8340 is a modular wall mounting system for video wall installations of any size. The BT8340 can mount screens in landscape or portrait orientations - perfect for digital signage that needs to stand out. As part of the System X range, the BT8340 can be used in thousands of different configurations and is ordered according to your requirements using B-Tech's online configuration tool.


Installation Overview Videos







BT8340 - System X Universal Multi-Rail Mounting System

















Configure a BT8340

  • Universal design suitable for all sized screens up to 50kg (per screen)
  • Can be used in an endless variety of configurations
  • High-end aesthetic quality
  • Tool-less micro-adjustments at 8 points for seamless display alignment
  • Suitable for landscape or portrait mounting
  • Can be used to create eye-catching, mosaic style installs
    (please contact your sales representative for more details)

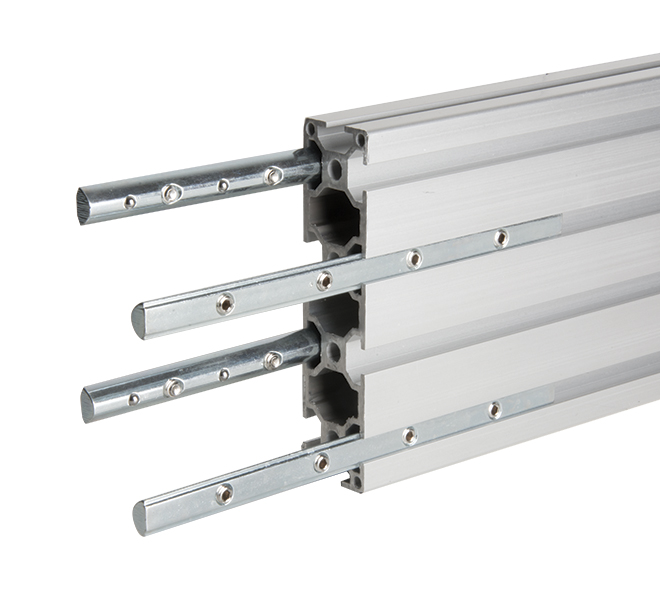

  • Multiple rail lengths available (rails can also be joined to create larger installs)
  • Safety screws help prevent unauthorised removal of screens
  • Recommended screen size: 32" - 65"
  • Max load: 50kg (per screen)
  • VESA® & non-VESA fixings: (max vertical dimension) 400mm*
  • Colour (VESA arms): Black
  • Colour (Horizontal Rail): Silver

    *Please note screens with VESA patterns larger than 400 x 400 need to use additional adaptors
    (BT7564) when used in portrait mode, these are available separately.

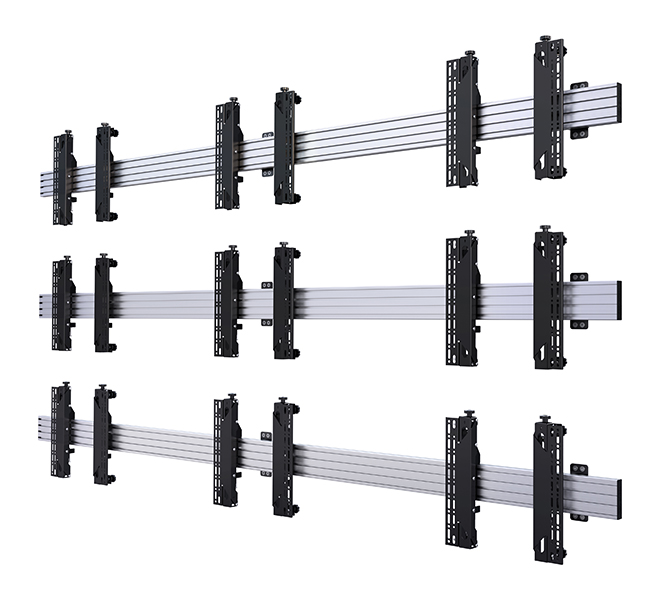

BT8340 - Universal Video Wall Mounting System Tool-less micro-adjustment at 8 points for seamless screen alignment Suitable for landscape or portrait mounting Multiple rail lengths available (rails can also be joined to create larger installs)

Assembly Leaflet (PDF)

Product Specification Sheet (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)
