Single Arm Flat Screen Wall Mount with Tilt and Swivel

BT7534

For Medium / Large Screens



  • Designed for screens up to 50” (127cm) / 40kg (88lbs)
  • Fits screens with VESA mounting patterns up to 400mm x 400mm
  • Easy tilt adjustment +/-15°
  • Features two swivel points: 180° at wall and 240° at interface
  • Security locking screws and Allen key provided for secure installation
  • Simple installation with all mounting hardware included



Maximum weightMaximum screen size
40kg (88lbs) 50" (127cm)
  BT7534 Single Arm with Tilt and Swivel Flat Screen Wall Mount for Medium Screens
  • Designed for screens up to 50” (127cm) / 40kg (88lbs)
  • Fits screens with VESA mounting patterns:
    75mm x 75mm, 100mm x 100mm, 200mm x 100mm,
    200mm x 200mm, 200mm x 300mm, 300mm x 200mm,
    300mm x 300mm, 400mm x 200mm, 400mm x 300mm, 400mm x 400mm,
  • Easy tilt adjustment +/- 15°
  • Features two swivel points:  180° at wall and 240° at interface
  • Alternative short arm included
  • CLIPLOGIC® cable management included
  • Security locking screws and Allen key provided for secure installation
  • Features ‘OWLS’™ On Wall Levelling System
  • Simple installation with all mounting hardware included
  • Screen Size: up to 50”
  • Max Weight: 40kg (88lbs)
  • Dist. From Wall: 136mm (5.4”) - 382mm (15”)
  • VESA Compatibility:
    75 x 75, 100 x 100, 200 x 100, 200 x 200, 200 x 300, 300 x 200, 300 x 300,
    400 x 200, 400 x 300, 400 x 400
  • Tilt: +/-15°
  • Swivel: 180°, 240°
  • Colours Available: Piano Black, Silver
  • Registered Design Number: 4003131
  • Community Design Number: 001713280-0014

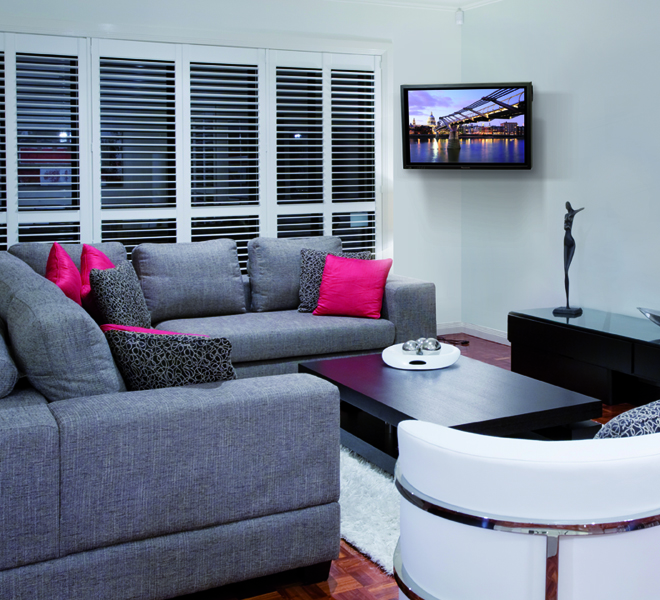

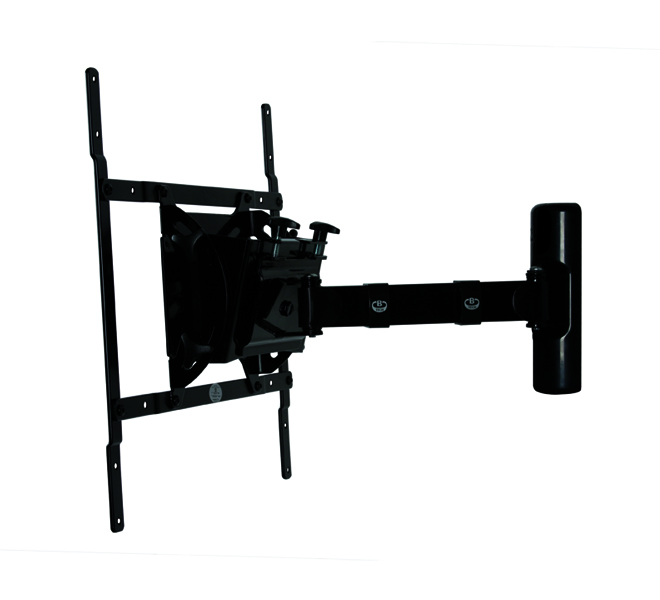

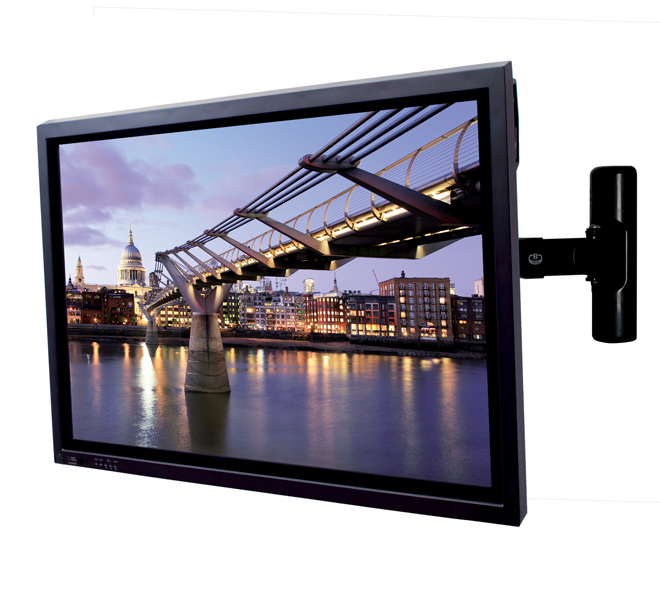

BT7534 Single Arm with Tilt and Swivel Flat Screen Wall Mount - Side View BT7534 Single Arm with Tilt and Swivel Flat Screen Wall Mount - with Screen BT7534 Single Arm with Tilt and Swivel Flat Screen Wall Mount - Lifestyle Image
