Full Motion Double Arm Flat Screen Desk Mount

BT7383

For Screens up to 24"



  • Designed for screens up to 24" (61cm) / 9kg (20lbs)
  • Fits screens with VESA mounting patterns:
    75 x 75mm and 100 x 100mm
  • Maximum extension: 560mm
  • Easy tilt adjustment: +/-40°
  • Features three swivel points:
    360° at pole, 360° at pivot and 180° at interface
  • Easy height adjustment using tool-less locking ring
  • Available in stylish Graphite Black or Silver finish





Maximum WeightAdjustable TiltMaximum Extenstion
9Kg +/-40° 560mm
  BT7383 Full Motion Double Arm Flat Screen Desk Mount
  • Designed for screens up to 24" (61cm) / 9kg (20lbs)
  • Fits screens with VESA mounting patterns:
    75 x 75mm and 100 x 100mm
  • Supplied with both a desk clamp and grommet
  • Maximum extension: 560mm
  • Easy tilt adjustment: +/-40°
  • Features three swivel points:
    360° at pole, 360° at pivot and 180° at interface
  • Easy height adjustment using tool-less locking ring
  • Simple installation with all fixings included
  • Available in stylish Graphite Black or Silver finish



*Minimum recommended screen weight: 1.5kg (3.3lbs)

  • Maximum Screen Size: 24” (61cm)
  • Maximum Weight: 9kg (20lbs)
  • Tilt: +/-40°
  • Swivel: 360° at pole and 180° at interface
  • VESA Compatibility: 75 x 75, 100 x 100
  • Maximum Extension: 560mm
  • Colours Available: Graphite Black, Silver
  • Community Design Number: 001713280-0043

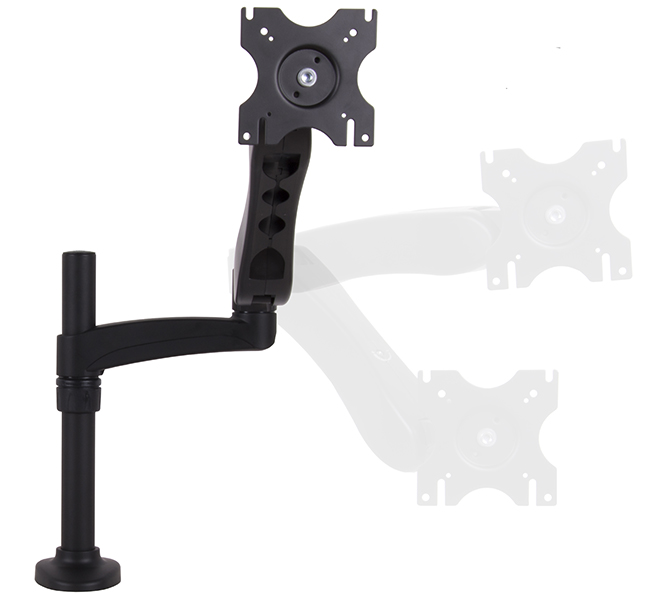

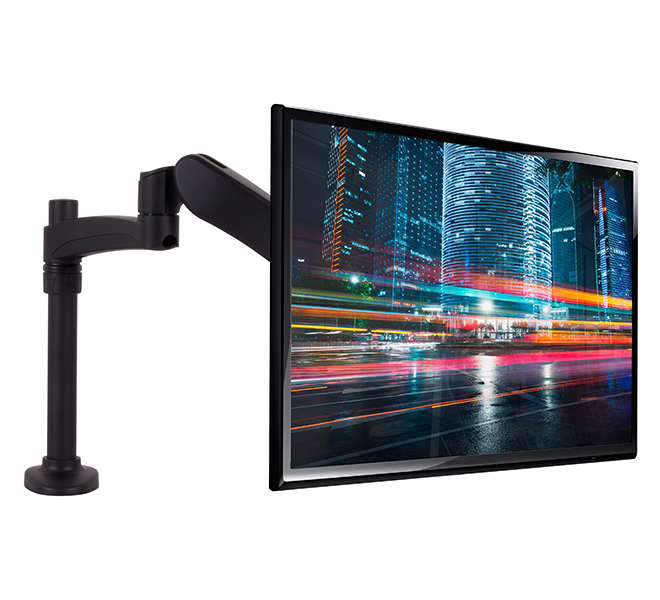

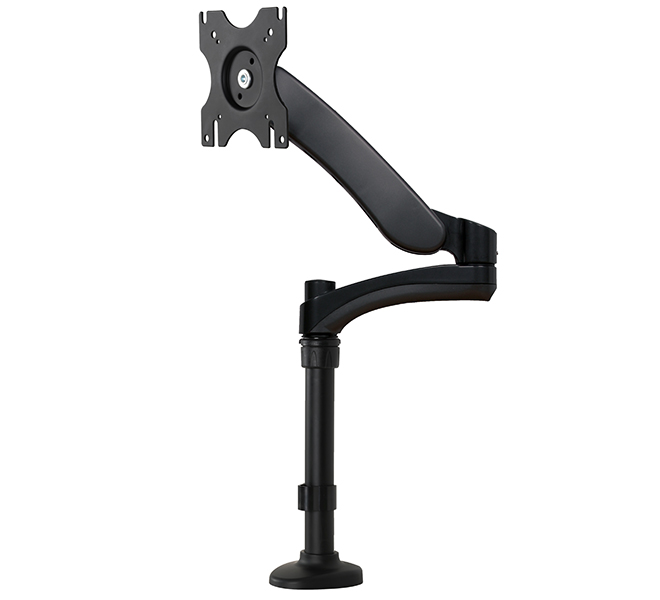

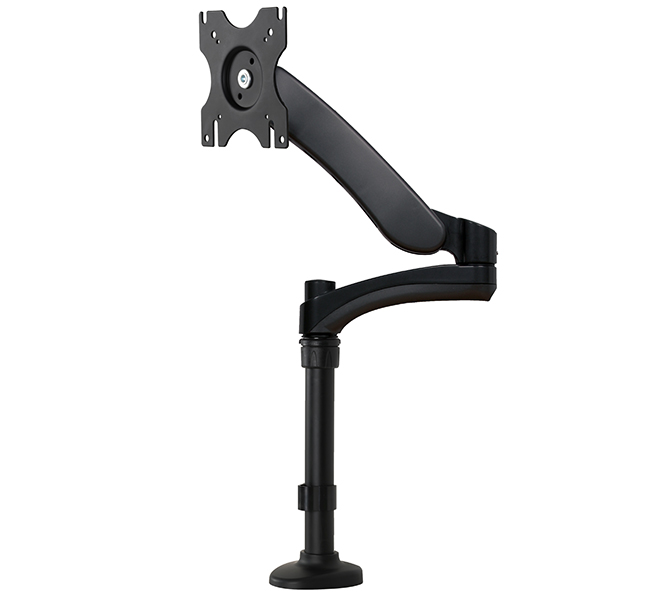

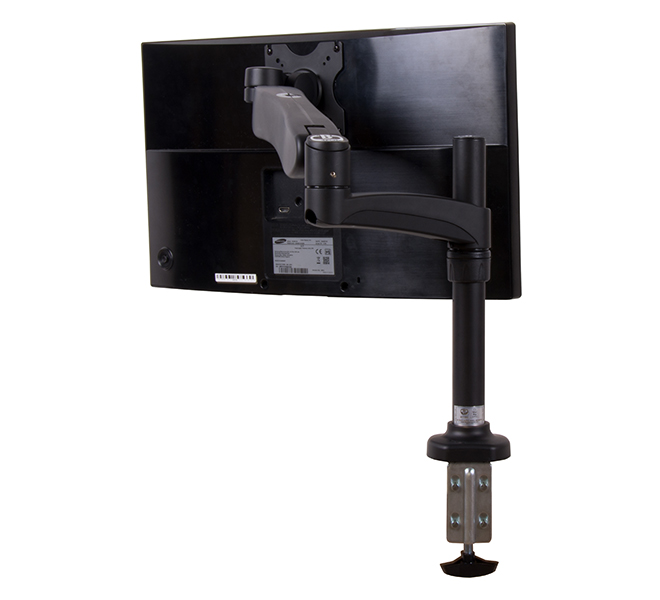

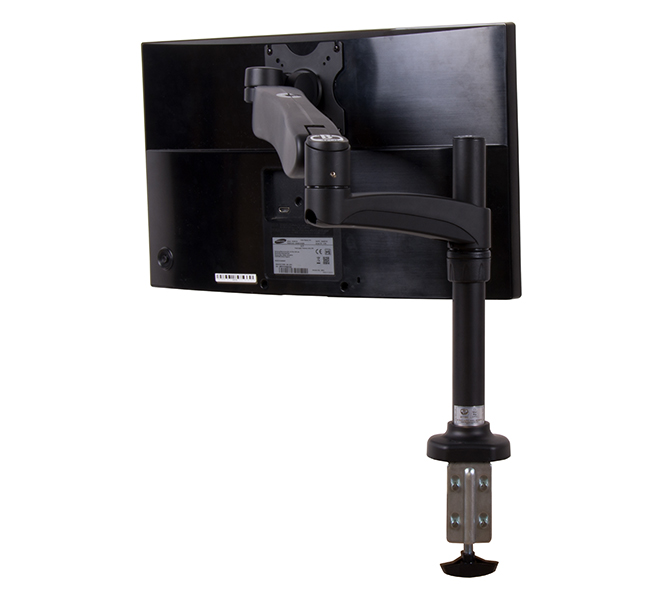

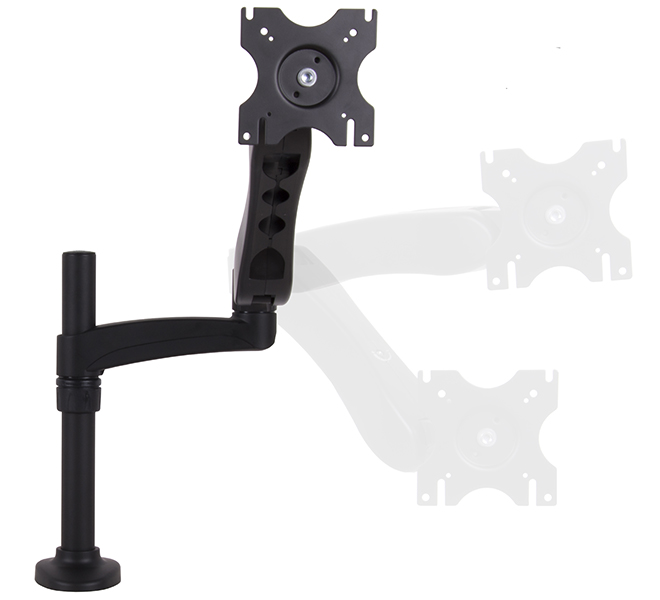

BT7383 Full Motion Double Arm Flat Screen Desk Mount - Side View BT7383 Full Motion Double Arm Flat Screen Desk Mount - with Screen BT7383 Full Motion Double Arm Flat Screen Desk Mount - Back View BT7383 Full Motion Double Arm Flat Screen Desk Mount - Also available in Silver

Assembly Leaflet (PDF)

Product Specification Sheet (PDF)
