Single Screen Portrait Digital Signage Kiosk


High-end, premium quality


The BT7000 is a display kiosk designed to portrait mount a single digital signage screen. A rigid chassis is fixed to a heavy duty steel base which can be used freestanding or bolted to the floor and is finished stylishly with satin black or white outer covers. The internal mounting system is made up of parts from our System X range, allowing 8-point micro-adjustment to ensure the mounted screen sits perfectly level and flush with the front opening of the kiosk, which is laser cut to match your screen size.



  BT7000 - Single Screen Portrait Signage Kiosk
  • ƒƒHigh-end aesthetic quality with a premium high satin finish
  • ƒƒTool-less micro-adjustments at 8 points for seamless screen alignment
  • ƒƒSuitable for portrait mounting
  • ƒƒIntegrated cable management
  • ƒƒ8mm thick heavy duty steel base
  • ƒƒCan be used freestanding or bolted to the floor
  • ƒƒSimple ‘hook-on’ screen installation
  • ƒƒLockable top panel helps prevent unauthorised removal of the screen
  • ƒƒRemovable front and rear panels for easy installation and maintenance
  • ƒƒIncludes internal storage area in lower section for media players and devices
  • ƒƒVented top and rear panels allow airflow to and from the device
  • ƒƒKiosks can be branded with your company logo if required
  • ƒƒAll mounting hardware included
  • ƒƒFor indoor use only
  • Suitable for screens: from 27" up to and above 98"
  • Max load: 50kg
  • VESA® and Non-VESA fixings: 200 x 200 up to 600 x 400
  • Kiosk Dimensions: W: 770mm D: 172mm H: 1850mm*
  • Base Dimensions: W: 520mm D: 790mm H: 8mm*
  • Colour: Black or White

*Please note this dimension applies to screens 42" - 55". Kiosk dimensions for other screen sizes may differ
 please ask for details

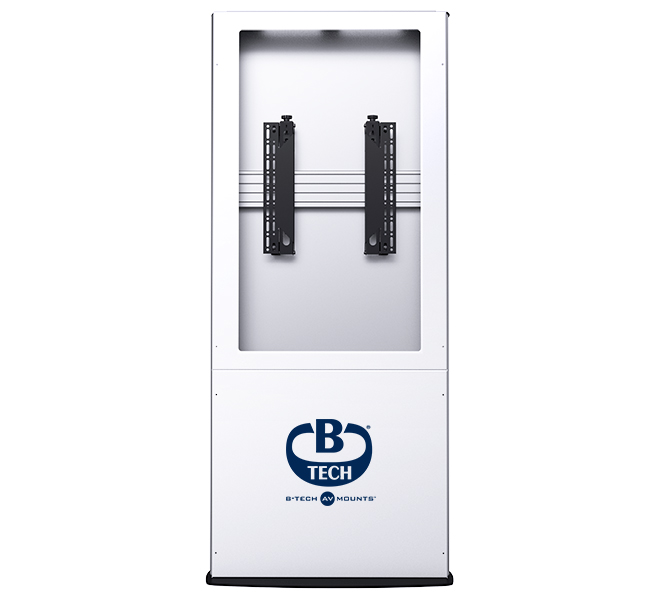

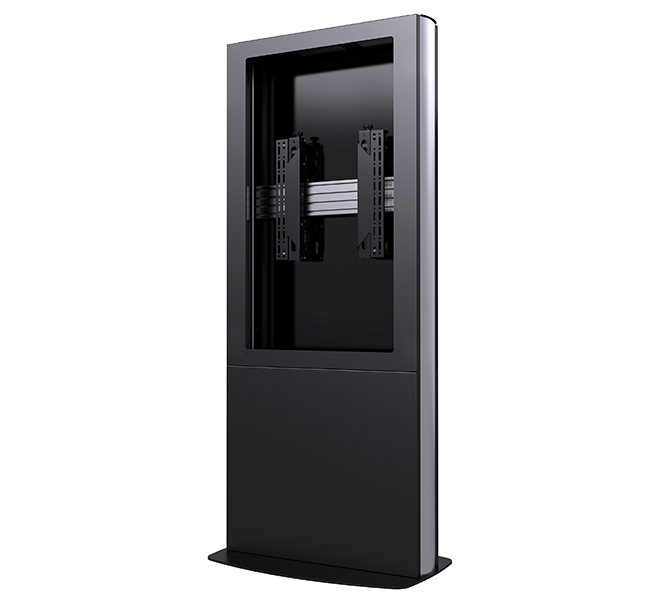

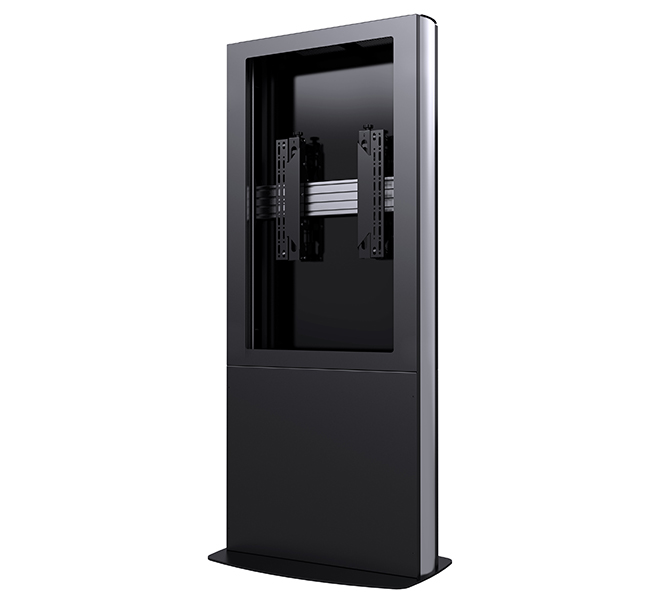

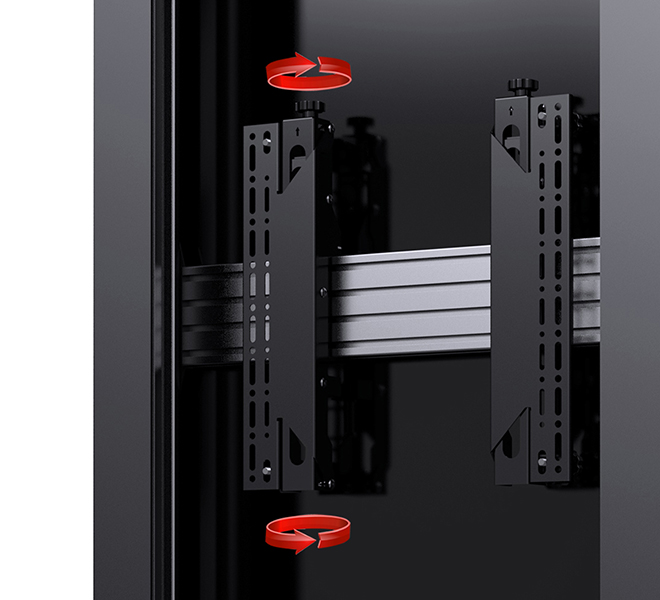

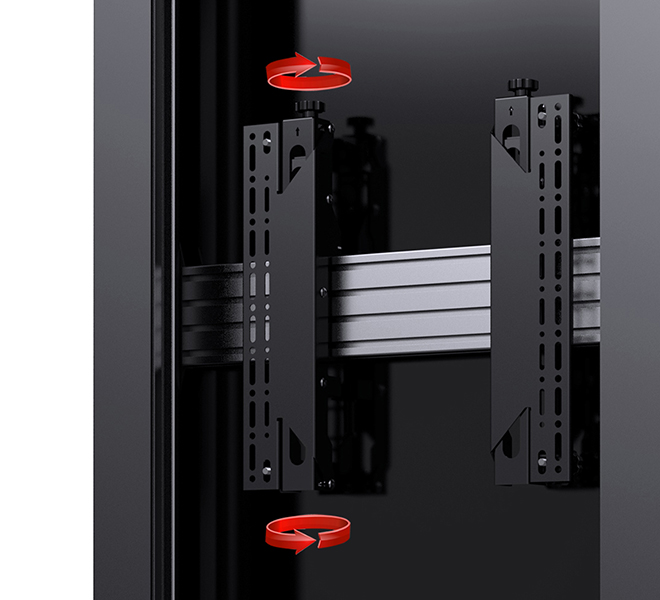

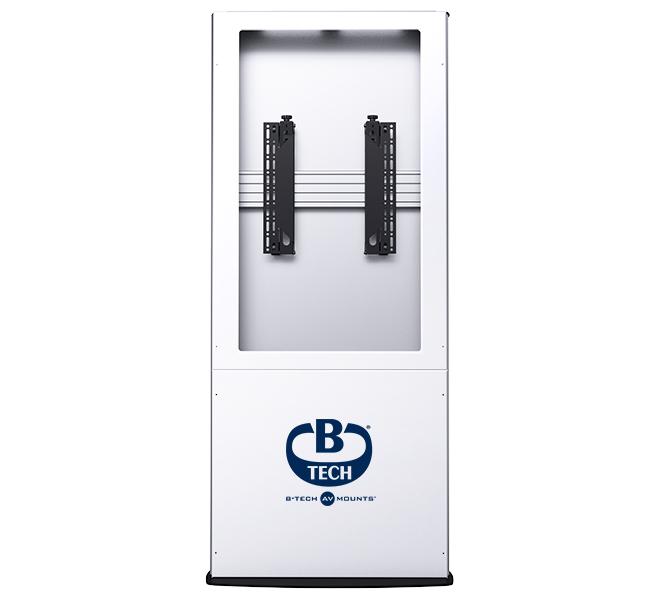

BT7000 - Single Screen Portrait Signage Kiosk BT7000 - Removable front and rear panels BT7000 - Tool-less 8-point Micro-adjustment BT7000 - Available with your company logo if required

Product Specification Sheet (PDF)

Assembly Leaflet (PDF) - Coming Soon
