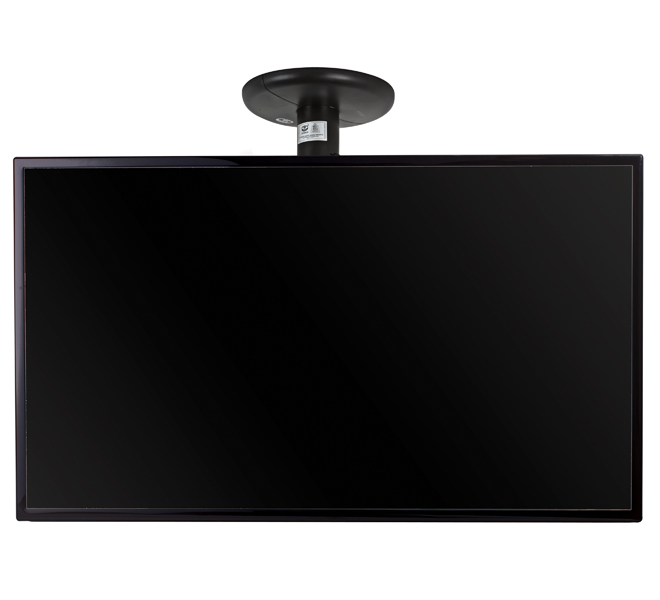

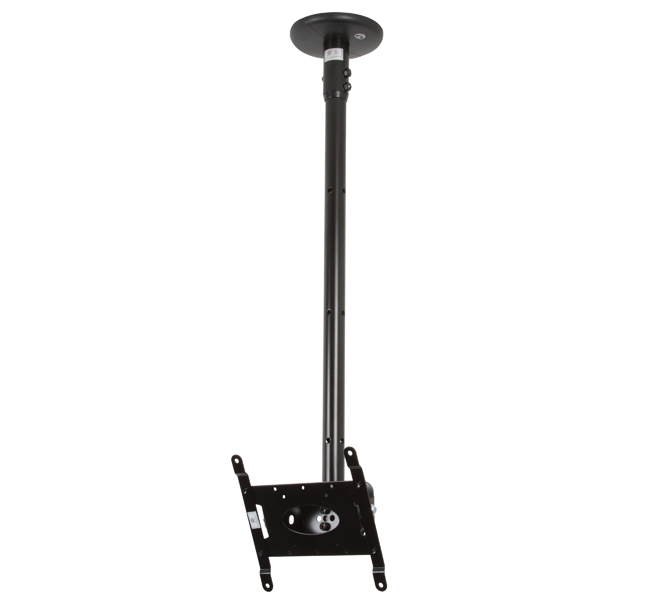

Flat Screen Ceiling Mount with Tilt

BT5833

For Medium Screens



  • Flat screen ceiling mount designed for screens up
    to 32” (81cm) / 25kg (55lbs)
  • Suitable for screens using VESA® fixings up to 200 x 200mm
  • Features +/-40° tilt
  • Security locking screw and Allen key provided
  • Integrated cable management
  • Available in 2 lengths:
    BT5832-075 Ceiling drop: 795mm (31.3") (to centre of mount)
    BT5832-150 Ceiling drop: 1545mm (60.8") (to centre of mount)



Maximum weightMaximum screen size
25kg (55lbs) 32" (81cm)
  BT5833-075 - Medium Drop Flat Screen Mount with Tilt - Black
  • Flat screen ceiling mount designed for screens up
    to 32” (81cm) / 25kg (55lbs)
  • Suitable for screens using VESA® fixings up to 200 x 200mm
  • Features +/-40° tilt
  • Security locking screw and Allen key provided
  • Integrated cable management
  • Simple ‘hook-on’ installation
  • Supplied with safety bolt for a secure installation

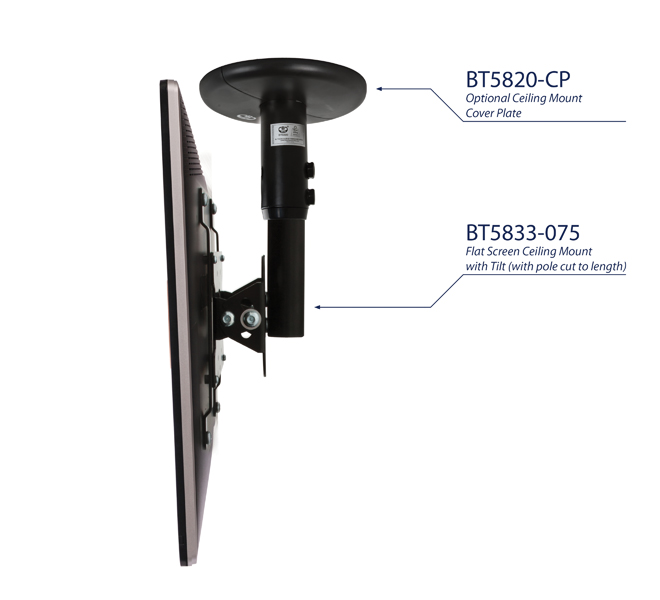

  • Coverplate included for a smart installation
  • Available in 2 lengths:
    BT5832-075 Ceiling drop: 795mm (31.3") (to centre of mount)
    BT5832-150 Ceiling drop: 1545mm (60.8") (to centre of mount)
  • Ceiling fixings and all mounting hardware included
  • Max. Screen Size: 32" (81cm)
  • Max. Weight: 25kg (55lbs)
  • Tilt: +/-40°
  • Colours Available: Black, White
  • Ceiling Drop:
    BT5832-075: 795mm (31.3") (to centre of mount)
    BT5832-150: 1545mm (60.8") (to centre of mount)
BT5833-075 - Medium Drop Flat Screen Ceiling Mount with Tilt - Black BT5833-075 - Medium Drop Flat Screen Ceiling Mount with Tilt - Black BT5833-075 - Medium Drop Flat Screen Ceiling Mount with Tilt - White BT5820-CP Coverplate Available Separately
BT5833 - 10cm drop with 32 BT5833 - 10cm drop with 32 BT5833 - 10cm drop with 32  BT5833 - 10cm drop

Assembly Leaflet (PDF)

Product Specification Sheet (PDF)
